ADVANCED PERFORMANCE& PROVEN ADVANTAGES
◆ High module conversion efficiency up to 22.52% by using innovative Half-cell design and Multi-busbar (MBB) cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation (PID) resistance. ◆ Power tolerance of ±5%. |
Model |
PW450Wp-108M |
MaximumPower (Pmax) |
450W |
Power Tolerance |
±5% |
Open Circuit Voltage(VOC) |
39.78V |
Short Circuit Current(ISC) |
14.00A |
Voltage at Nominal Power (Vmp) |
33.22V |
Current at Nominal Power (Imp) |
13.55A |
Size of Module |
1762 x 1134 x 30mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25θC , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/ 1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Effieiency |
22.52% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |
30-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 12-year limited warranty of materials and workmanship.
Standarding Packing: 36pcs/Pallet Module Quantity of 20’ container: 360pcs Module Quantity of 40’ container: 936pcs

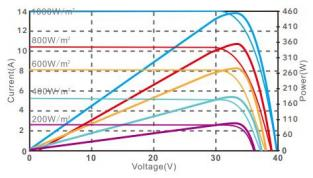

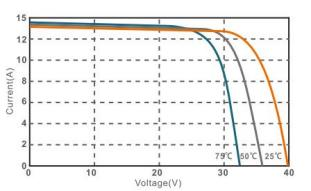

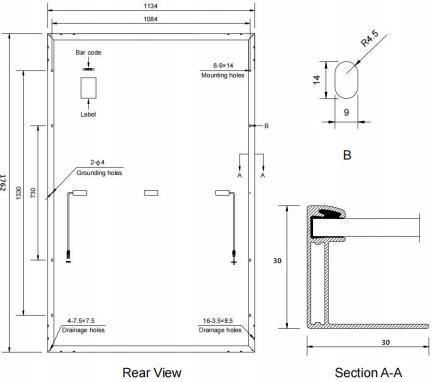

| ENGINEERING DRAWING | IV CURVES |
 |
|
