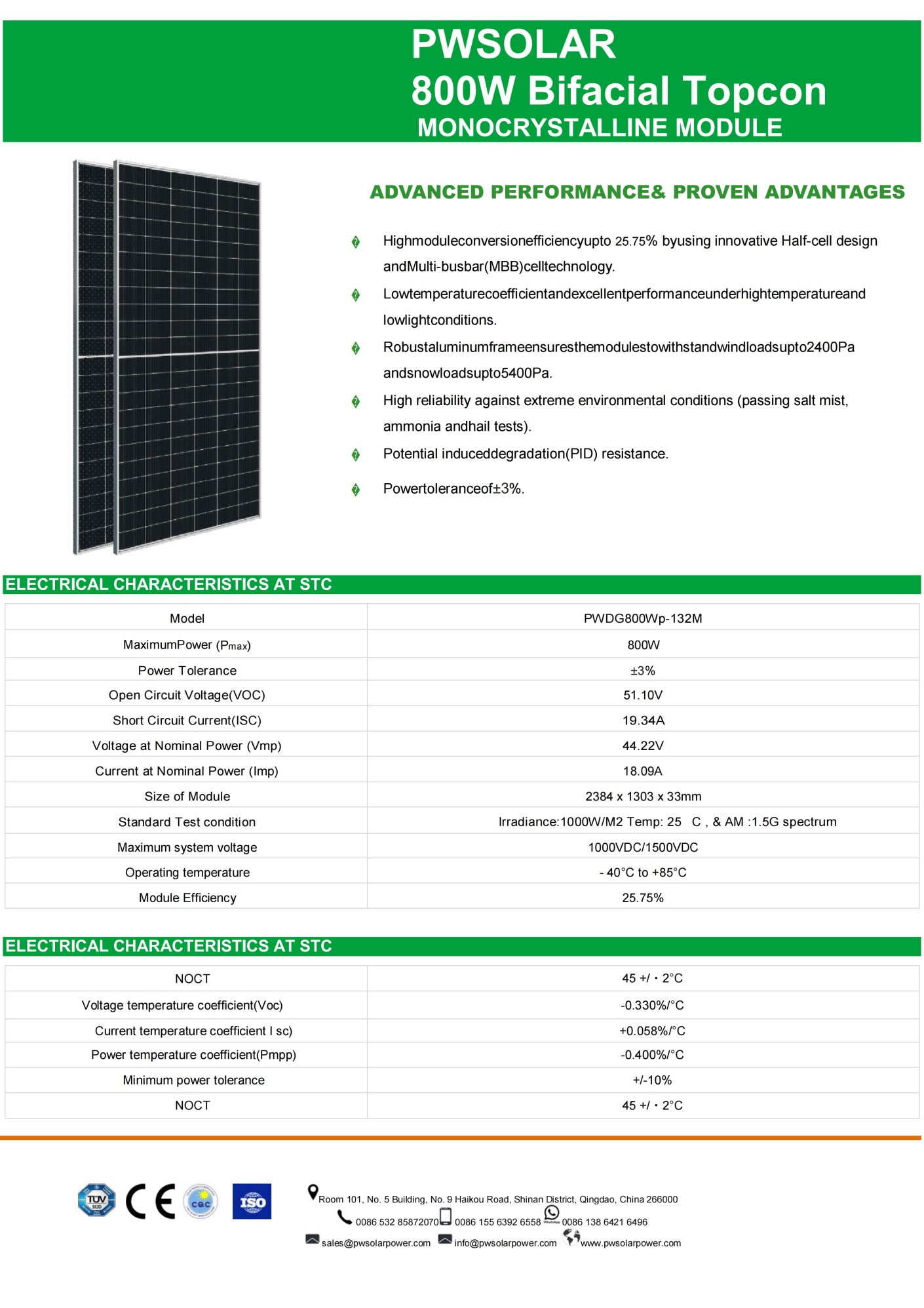

ADVANCED PERFORMANCE&PROVEN ADVANTAGES
◆ High module conversion efficiency up to 25.75% by using innovative Half-cut design and Multi-busbar (MBB) cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation (PID) resistance. |
Model |
PWDG800Wp-132M |
Maximum Power (Pmax) |
800W |
Power Tolerance |
±3% |
Open Circuit Voltage(VOC) |
51.10V |
Short Circuit Current(ISC) |
19.34A |
Voltage at Nominal Power (Vmp) |
44.22V |
Current at Nominal Power (Imp) |
18.09A |
Size of Module |
2384 x 1303 x 33mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25 C, & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
-40°C to +85°C |
Module Efficiency |
25.75% |
NOCT |
45 +/- 2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/- 2°C |
Cell Type |
Monocrystalline(210*105) |
Number of cell |
132pcs(6x22) |

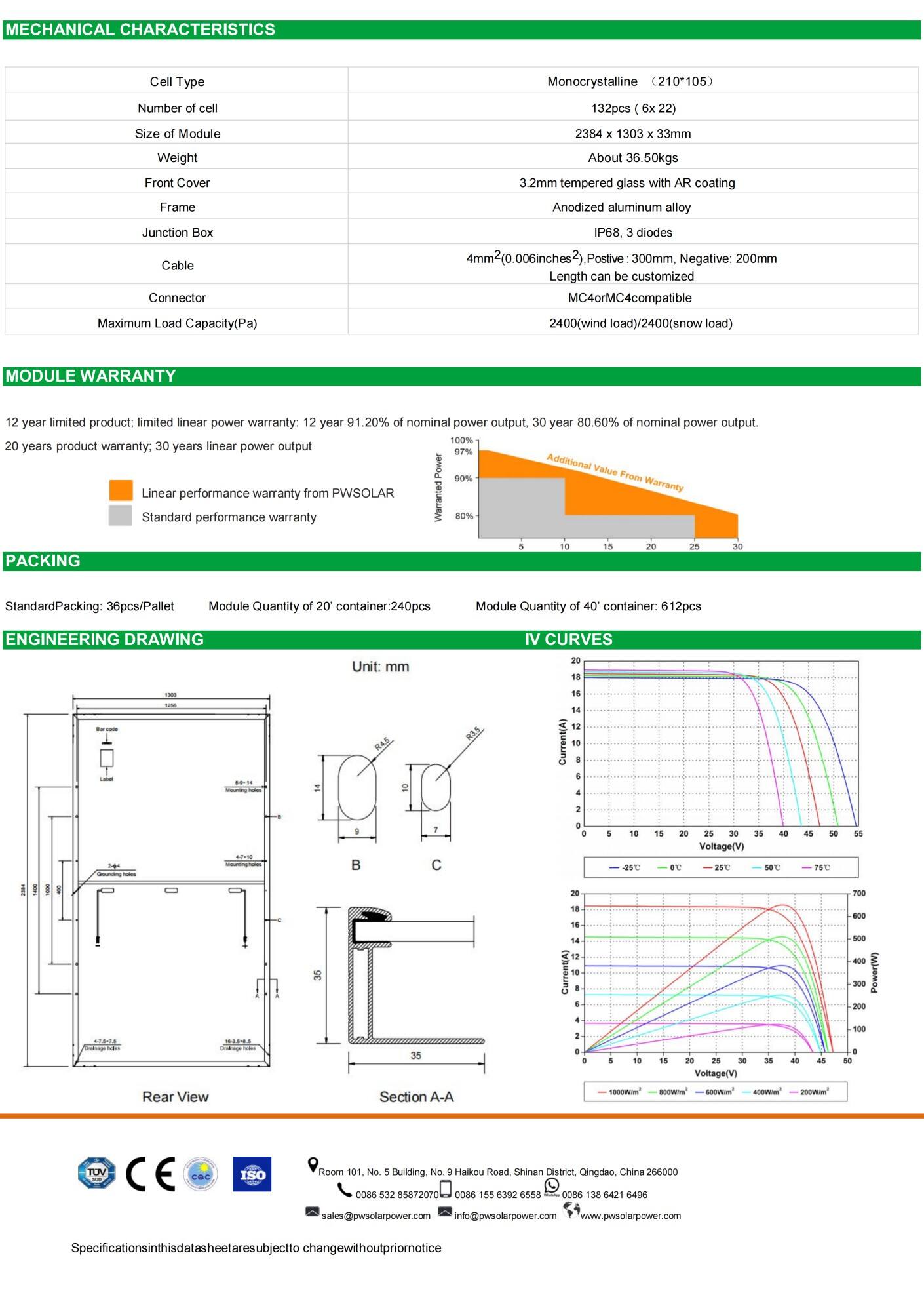

Size of Module |
2384×1303×33mm |
Weight |
About 36.50kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP68,3 diodes |
Cable |
4mm²(0.006inches?),Postive:300mm,Negative:200mm Length can be customized |
Connector |
MC4orMC4compatible |
Maximum Load Capacity(Pa) |
2400(wind load)/2400(snow load) |
12 year limited product warranty; linear power warranty: 12 year 91.20% of nominal power output, 30 year 80.60% of nominal power output.
20 years product warranty; 30 years linear power output.
StandardPacking:36pcs/Pallet Module Quantity of 20'container:240pcs Module Quantity of 40'container:612pcs
| ENGINEERING DRAWING | IV CURVES |
 |
|
