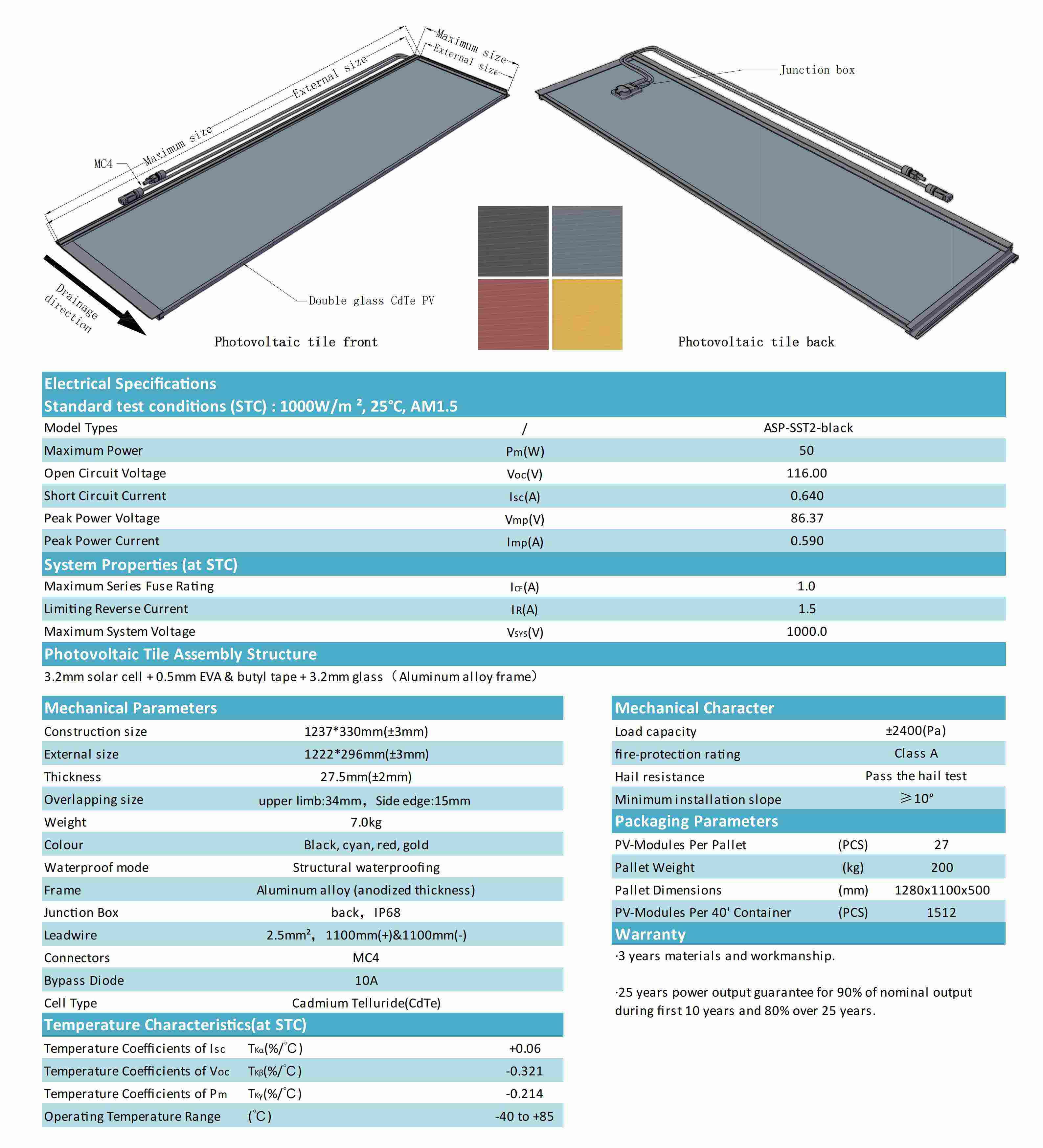

Standard test condifions (STC) : 1000W/m ², 25°C, AM1.5
Model Types |
/ |
ASP-SST2-black |
Maximum Power |
Pm(W) |
50 |
Open Circuit Voltage |
Voc(V) |
116.00 |
Short Circuit Current |
Isc(A) |
0.640 |
Peak Power Voltage |
Vmp(V) |
86.37 |
Peak Power Current |
Imp(A) |
0.590 |
Maximum Series Fuse Rafing |
ICF(A) |
1.0 |
Li mifing Reverse Current |
IR(A) |
1.5 |
Maximum System Voltage |
VSYS(V) |
1000.0 |

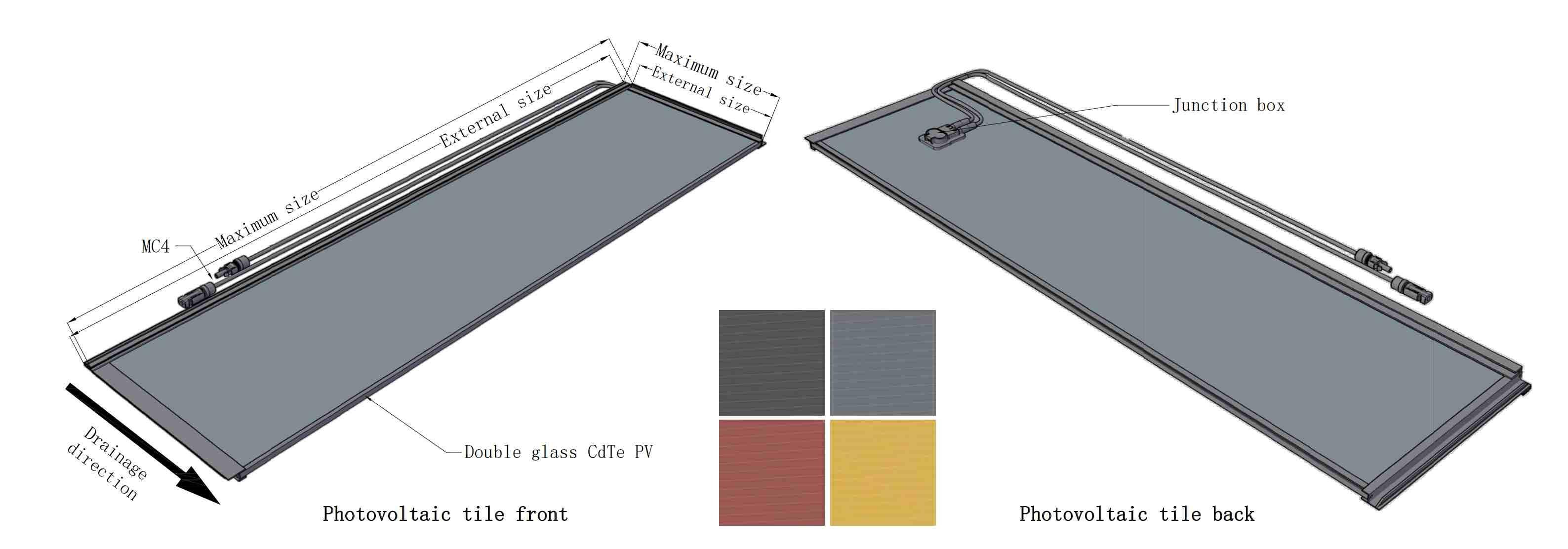

3.2mm solar cell + 0.5mm EVA & butyl tape + 3.2mm glass（Aluminum alloy frame）
Construcfion size |
1237*330mm(±3mm) |
External size |
1222*296mm(±3mm) |
Thickness |
27.5mm(±2mm) |
Overlapping size |
upper limb:34mm ，Side edge:15mm |
Weight |
7.0kg |
Colour |
Black, cyan, red, gold |
Waterproof mode |
Structural waterproofing |
Frame |
Aluminum alloy (anodized thickness) |
Juncfion Box |
back ， IP68 |
Leadwire |
2.5mm² , 1100mm(+)&1100mm(-) |
Connectors |
MC4 |
Bypass Diode |
10A |
Cell Type |
Cadmium Telluride(CdTe) |
Temperature Coe佧ci ents of Isc |
TKα(%/℃) |
+0.06 |
Temperature Coe佧ci ents of Voc |
TKβ(%/℃) |
-0.321 |
Temperature Coe佧ci ents of Pm |
TKv(%/℃) |
-0.214 |
Operafing Temperature Range |
(℃) |
-40 to +85 |
Load capacity |
±2400(Pa) |
fire-protecfion rafing |
Class A |
Hail resistance |
Pass the hail test |
Minimum install afion slope |
≥ 10° |
PV-Modules Per Pallet |
(PCS) 27 |
Pallet Weight |
(kg) 200 |
Pallet Dimensions |
(mm) 1280x1100x500 |
PV-Modules Per 40' Container |
(PCS) 1512 |
· 3 years materials and workmanship.
· 25 years power output guarantee for 90% of nominal output during first 10 years and 80% over 25 years .
