10% Transparent 380W Solar Panel

ADVANCED PERFORMANCE & PROVEN ADVANTAGES

◆ High module conversion efficiency up to 20.60% by using innovative Half-cell design and Multi-busbar(MBB) cell technology.

◆ Low temperature coefficient and excellent performance under high temperature and low light conditions.

◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.

◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests).

◆ Potential induced degradation (PID) resistance.

◆ Positive power tolerance of 0 ~ +5w.

Model

PWDG380Wp-120M

Maximum Power (Pmax)

380W

Power Tolerance

0 ~ + 5W

Open Circuit Voltage (VOC)

41.80V

Short Circuit Current (ISC)

11.61A

Voltage at Nominal Power (Vmp)

34.65V

Current at Nominal Power (Imp)

10.98A

Size of Module

1767 x 1040 x 6mm

Standard Test condition

Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum

Maximum system voltage

1000VDC/1500VDC

Operating temperature

40°C to +85°C

Module Effieiency

20.60%

NOCT

45 +/・2°C

Voltage temperature coefficient(Voc)

-0.330%/°C

Current temperature coefficient I sc)

+0.058%/°C

Power temperature coefficient(Pmpp)

-0.400%/°C

Minimum power tolerance

+/-10%

NOCT

45 +/・2°C

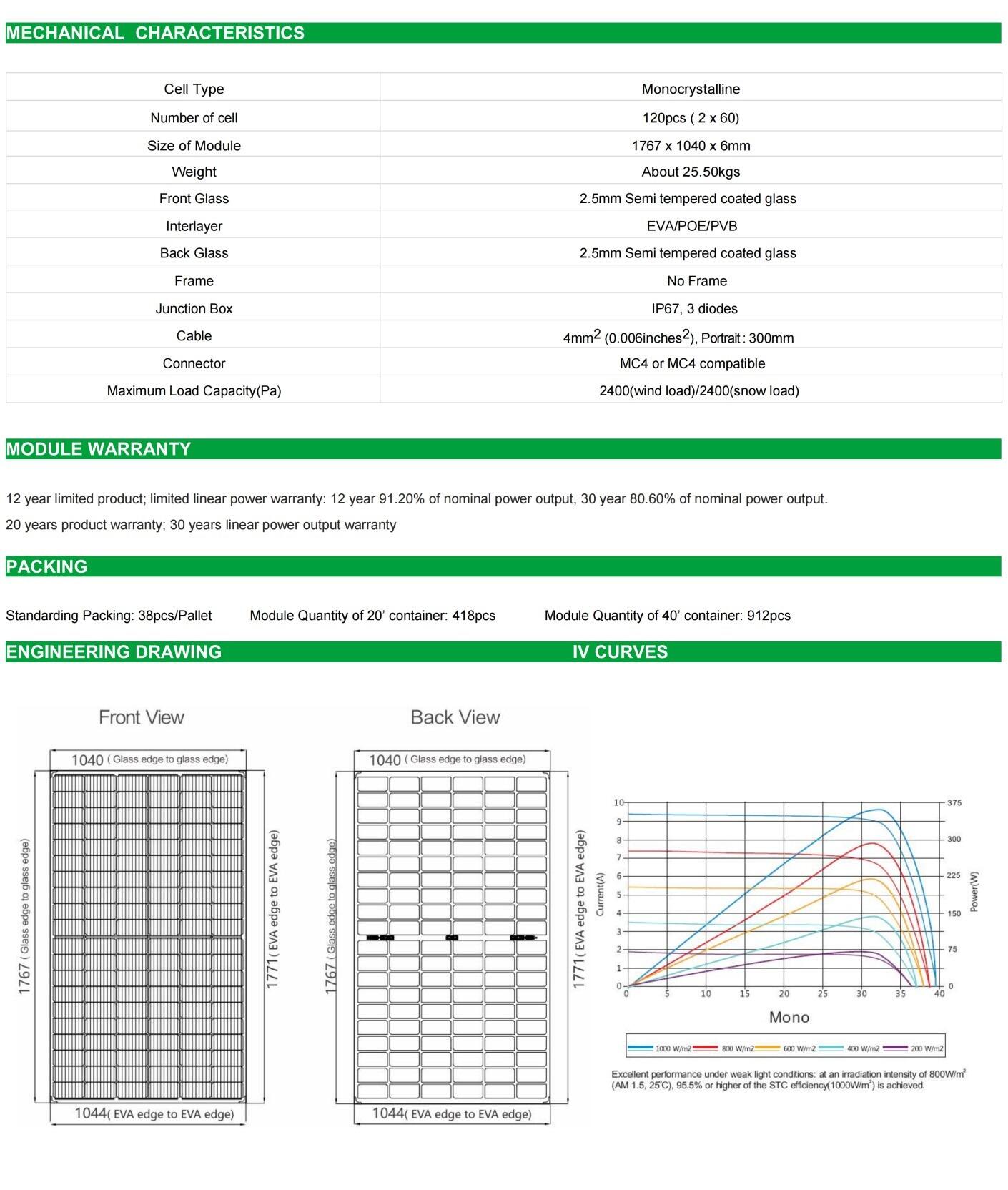

Cell Type

Monocrystalline

Number of cell

120pcs ( 2 x 60)

Size of Module

1767 x 1040 x 6mm

Weight

About 25.50kgs

Front Glass

2.5mm Semi tempered coated glass

Interlayer

EVA/POE/PVB

Back Glass

2.5mm Semi tempered coated glass

Frame

No Frame

Junction Box

IP67, 3 diodes

Cable

4mm2 (0.006inches2), Portrait : 300mm

Connector

MC4 or MC4 compatible

Maximum Load Capacity(Pa)

2400(wind load)/2400(snow load)
