ADVANCED PERFORMANCE& PROVEN ADVANTAGES ◆ High module conversion efficiency up to 23.50% by using innovative Half-cell design and Multi-busbar(MBB)cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low lightconditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snowloads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation(PID) resistance. ◆Power tolerance of ±3%. |
ELECTRICAL CHARACTERISTICS AT STC
Model |
PW730Wp-132M |
Maximum Power (Pmax) |
730W |
Power Tolerance |
±3% |
Open Circuit Voltage(VOC) |
48.94V |
Short Circuit Current(ISC) |
18.79A |
Voltage at Nominal Power (Vmp) |
41.13V |
Current at Nominal Power (Imp) |
17.75A |
Size of Module |
2384 x 1303 x 33mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Efficiency |
23.50% |
ELECTRICAL CHARACTERISTICS AT STC
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |
MECHANICAL CHARACTERISTICS
Cell Type |
Monocrystalline （210*105） |
Number of cell |
132pcs ( 6 x 22) |
Size of Module |
2384 x 1303 x 33mm |
Weight |
About 30.60kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP68, 3 diodes |
Cable |
4mm2(0.006inches2),Postive : 300mm, Negative: 200mm Length can be customized |
Connector |
MC4orMC4compatible |
Maximum Load Capacity(Pa) |
2400(wind load)/2400(snow load) |
MODULE WARRANTY
12 year limited product; limited linear power warranty: 12 year 91.20% of nominal power output, 30 year 80.60% of nominal power output.
20 years product warranty; 30 years linear power output
PACKING
Standard Packing: 36pcs/Pallet Module Quantity of 20’ container:240pcs Module Quantity of 40’ container: 612pcs

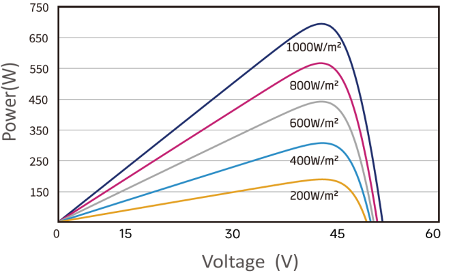

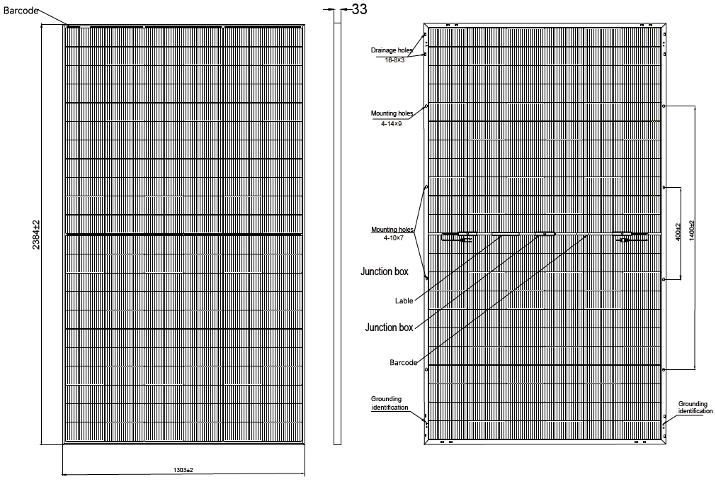

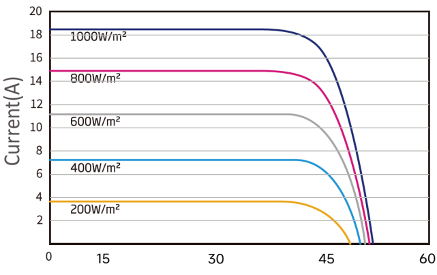

| ENGINEERING DRAWING | IV CURVES |
 |

|
