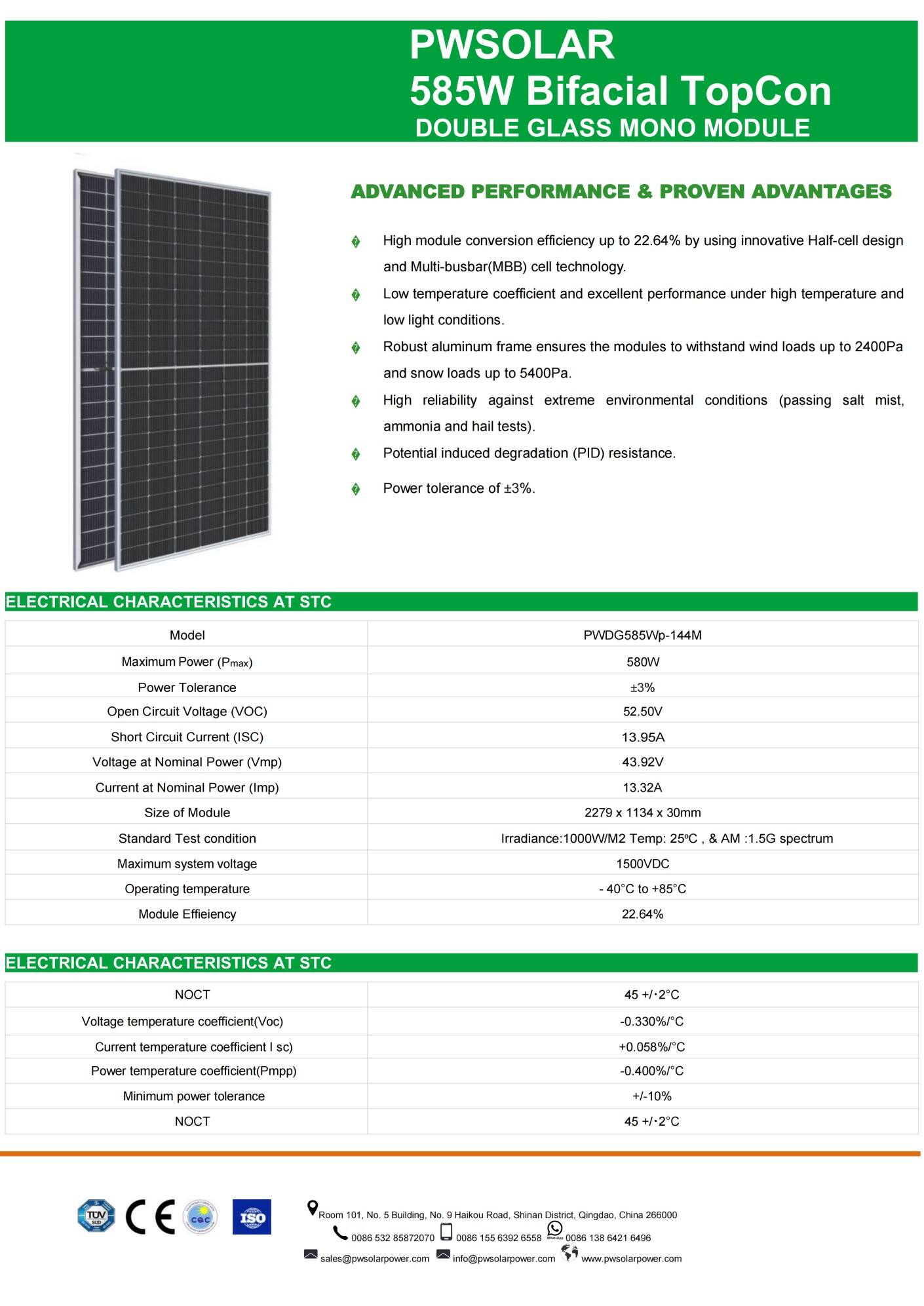

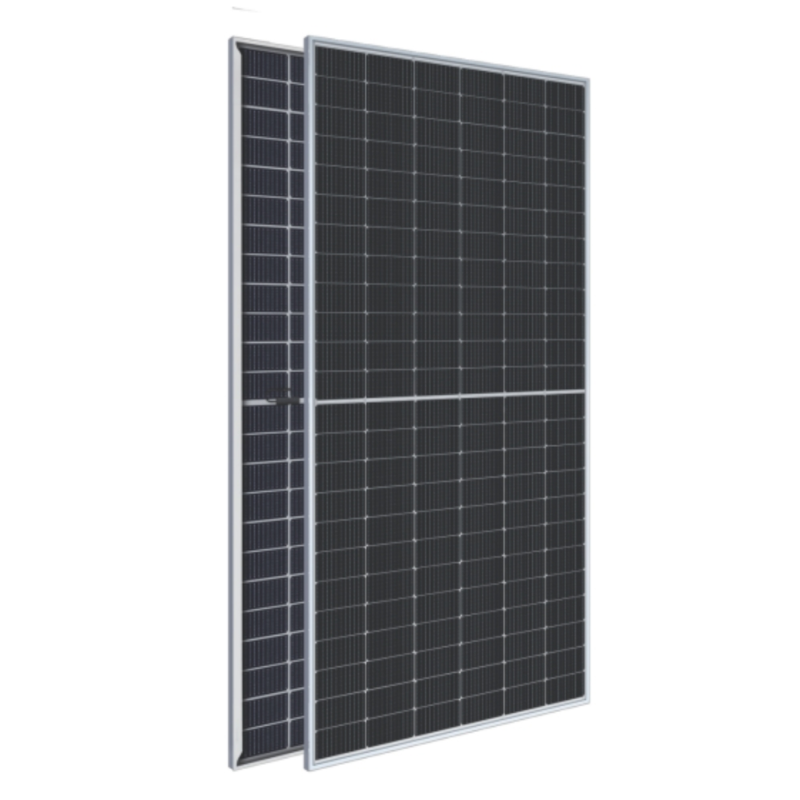

Topcon N-Type 585W Bifacial Solar Panel

ADVANCED PERFORMANCE & PROVEN ADVANTAGES

◆ High module conversion efficiency up to 22.64% by using innovative HHalf-cell design
and Multi-busbar(MBB) cell technology.
◆ Low temperature coefficient and excellent performance under high temperature and
low light conditions.
◆ Robust aluminum frame ensures the modules to withstand windloads up to 2400Pa
and snow loads up to 5400Pa.
◆ High reliability against extreme environmental conditions(passing salt mist,
ammonia and hail tests).
◆ Potential induced degradation (PID) resistance.
◆ Power tolerance of +3%.

Model

PWDG585Wp-144M

Maximum Power (Pmax)

580W

Power Tolerance

±3%

Open Circuit Voltage (Voc)

52.50V

Short Circuit Current (Isc)

13.95A

Voltage at Nominal Power (Vmp)

43.92V

Current at Nominal Power (Imp)

13.32A

Size of Module

2279 x 1134 x 30mm

Standard Test condition

Irradiance:1000W/M2 Temp: 25°C, & AM :1.5G spectrum

Maximum system voltage

1500VDC

Operating temperature

-40°C to +85°C

Module Efficiency

22.64%

NOCT

45 +/- 2°C

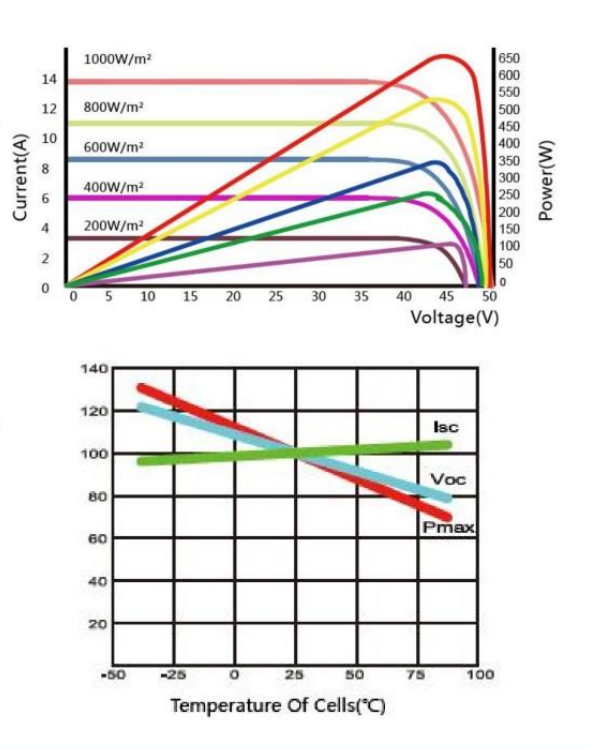

Voltage temperature coefficient(Voc)

-0.330%/°C

Current temperature coefficient I sc

+0.058%/°C

Power temperature coefficient(Pmpp)

-0.400%/°C

Minimum power tolerance

+/-10%

NOCT

45 +/- 2°C

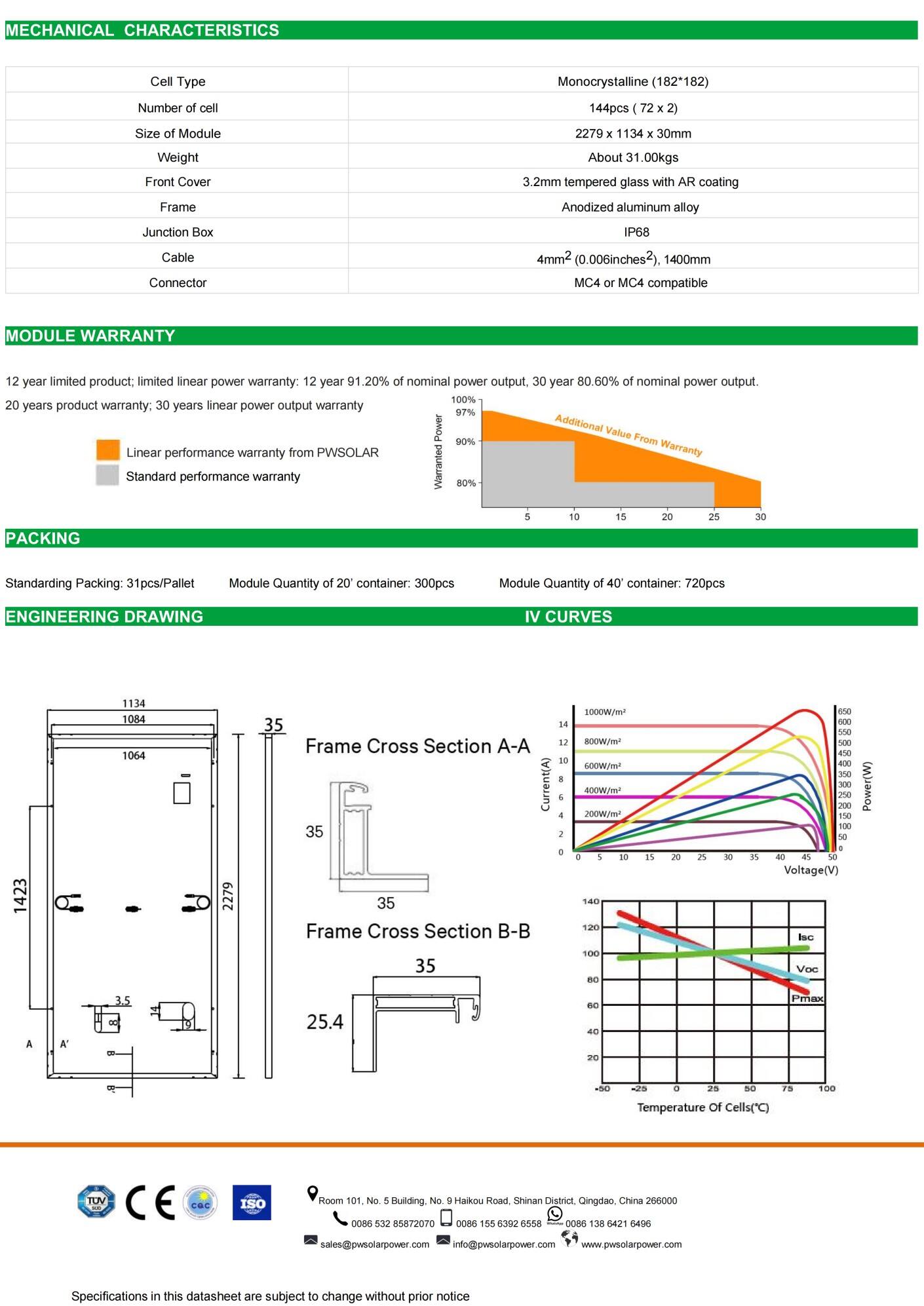

Cell Type

Monocrystalline(182*182)

Number of cell

144pcs(72×2)

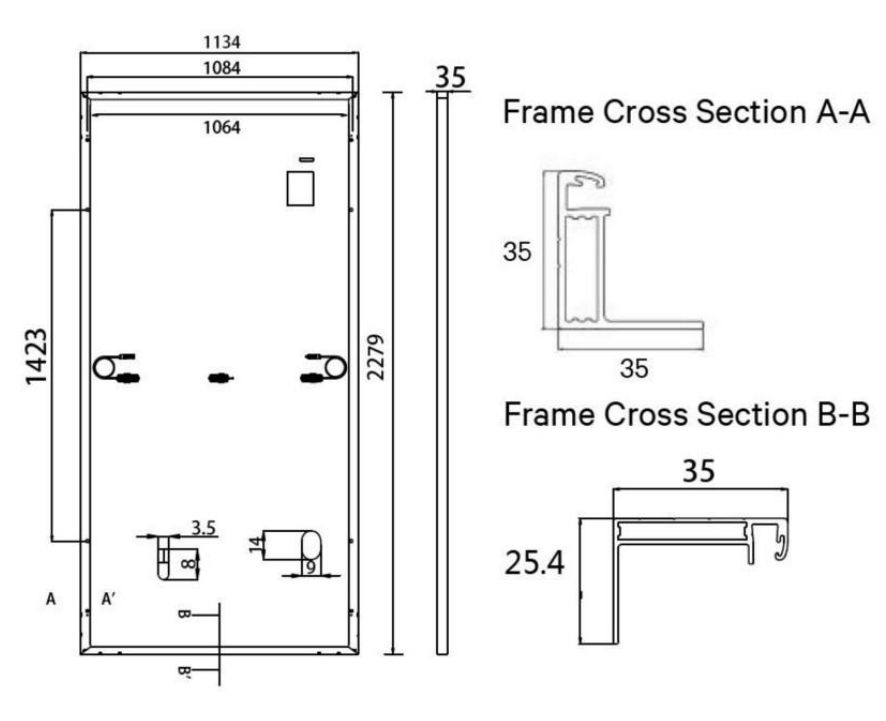

Size of Module

2279×1134×30mm

Weight

About 31.00kgs

Front Cover

3.2mm tempered glass with AR coating

Frame

Anodized aluminum alloy

Junction Box

IP68

Cable

4mm²(0.006inches2),1400mm

Connector

MC4 or MC4 compatible
