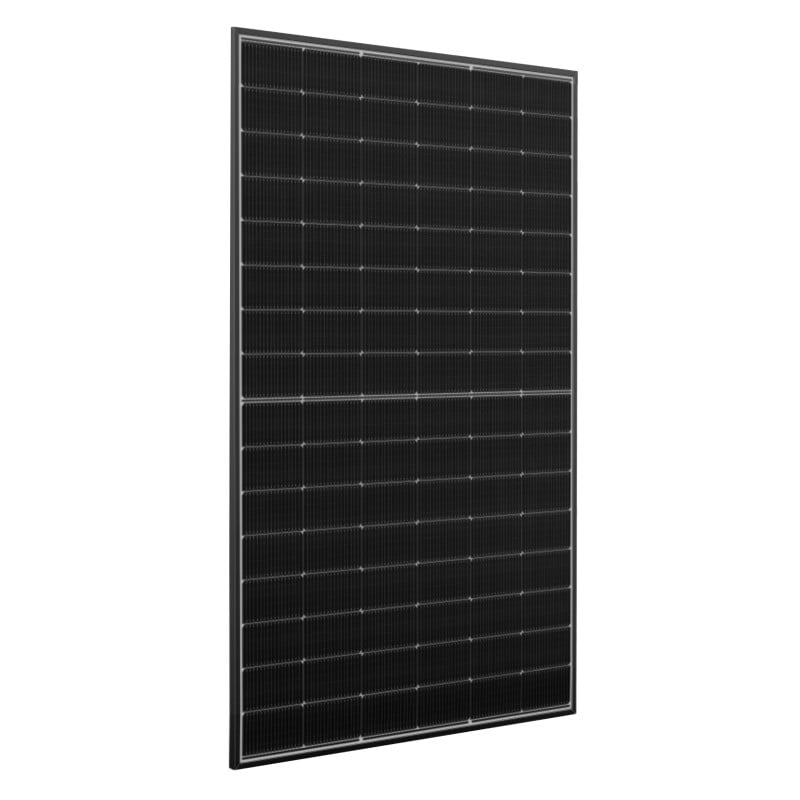

PWSOLAR 460W Full Black Topcon MONOCRYSTALLINE MODULE
|
ADVANCED PERFORMANCE& PROVEN ADVANTAGES
◆ High module conversion efficiency up to 23.02% by using innovative Half-cell design and Multi-busbar (MBB)cell technology.
◆ Low temperature coefficient and excellent performance under high temperature and low lightconditions.
◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snowloads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation(PID) resistance.
◆ Power tolerance of +3%.
|
ELECTRICAL CHARACTERISTICS AT STC
Model |
PW460Wp-96M |
Maximum Power (Pmax) |
460W |
Power Tolerance |
+3% |
Open Circuit Voltage(VOC) |
37.32V |
Short Circuit Current(ISC) |
15.46A |
Voltage at Nominal Power (Vmp) |
30.98V |
Current at Nominal Power (Imp) |
14.85A |
Size of Module |
1762 x 1134 x 30mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Efficiency |
23.02% |
ELECTRICAL CHARACTERISTICS AT STC
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient (Isc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |
MECHANICAL CHARACTERISTICS
Cell Type |
Monocrystalline （182 x 105mm） |
Number of cell |
96pcs ( 2 x 48) |
Size of Module |
1762 x 1134 x 30mm |
Weight |
About 23.80kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP68, 3 diodes |
Cable |
4mm2(0.006inches2),300mm(11.81inches)/Customized |
Connector |
MC4 or MC4 compatible |
MODULE WARRANTY
30-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 12-year limited warranty of materials and workmanship.
PACKING
Standard Packing: 36pcs/Pallet Module Quantity of 20’ container: 216cs Module Quantity of 40’ container: 936pcs

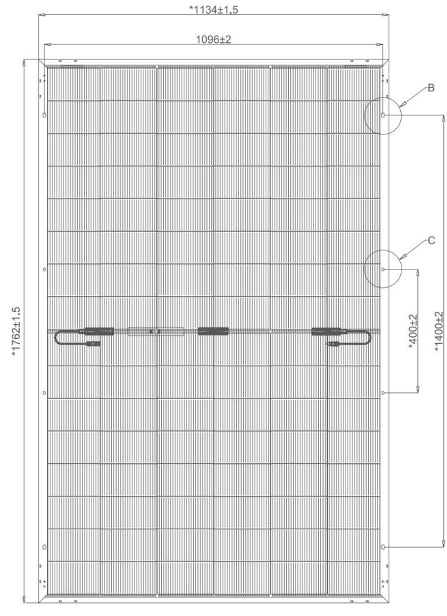

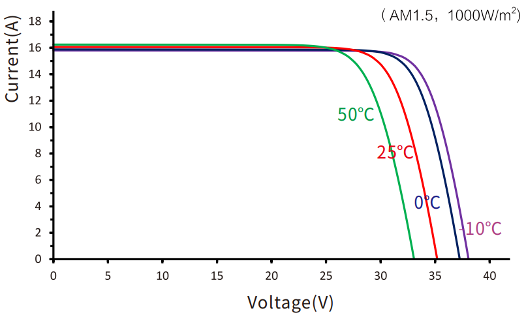

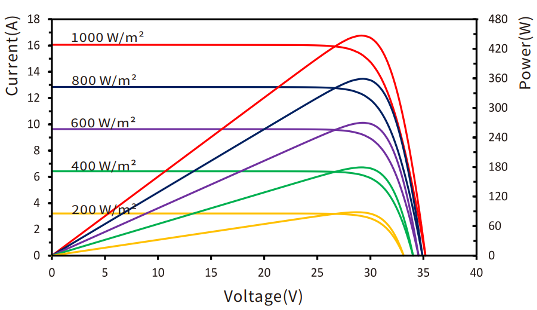

| ENGINEERING DRAWING | IV CURVES |
 |
  |
