ADVANCED PERFORMANCE&PROVEN ADVANTAGES
◆ High module conversion efficiency up to 23.34%by using innovative Half-celldesign and Multi-busbar(MBB)cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions(passing salt mist, ammonia and hail tests). ◆ Potential induced degradation(PID)resistance. ◆ Power tolerance of±3%. |
| Model | PWDG725Wp-132M |
|---|---|
| Maximum Power (Pmax) | 725W |
| Power Tolerance | ±3% |
| Open Circuit Voltage(VOC) | 48.90V |
| Short Circuit Current(ISC) | 18.74A |
| Voltage at Nominal Power (Vmp) | 41.00V |
| Current at Nominal Power (Imp) | 17.69A |
| Size of Module | 2384 x 1303 x 30mm |
| Standard Test condition | Irradiance:1000W/M2 Temp: 25°C, & AM :1.5G spectrum |
| Maximum system voltage | 1000VDC/1500VDC |
| Operating temperature | -40°C to +85°C |
| Module Efficiency | 23.34% |
ELECTRICAL CHARACTERISTICS AT STC
| NOCT | 45 +/-2°C |
|---|---|
| Voltage temperature coefficient(Voc) | -0.330%/°C |
| Current temperature coefficient I sc | +0.058%/°C |
| Power temperature coefficient(Pmpp) | -0.400%/°C |
| Minimum power tolerance | +/-10% |
| NOCT | 45 +/-2°C |
Cell Type |
Monocrystalline(210*105) |
Number of cell |
132pcs(6x22) |
Size of Module |
2384×1303×30mm |
Weight |
About 30.60kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP68,3 diodes |
Cable |
4mm²(0.006inches²),Postve:300mm,Negative:200mm Length can be customized |
Connector |
MC4orMC4compatible |
Maximum Load Capacity(Pa) |
2400(wind load)/2400(snow load) |
12 year limited product;limited linear power warranty:12 year 91.20%of nominal power output, 30 year 80.60%of nominal power output.
20 years product warranty;30 years linear power output
Standard Packing:36pcs/Pallet Module Quantity of 20'container:240pcs Module Quantity of 40'container:612pcs

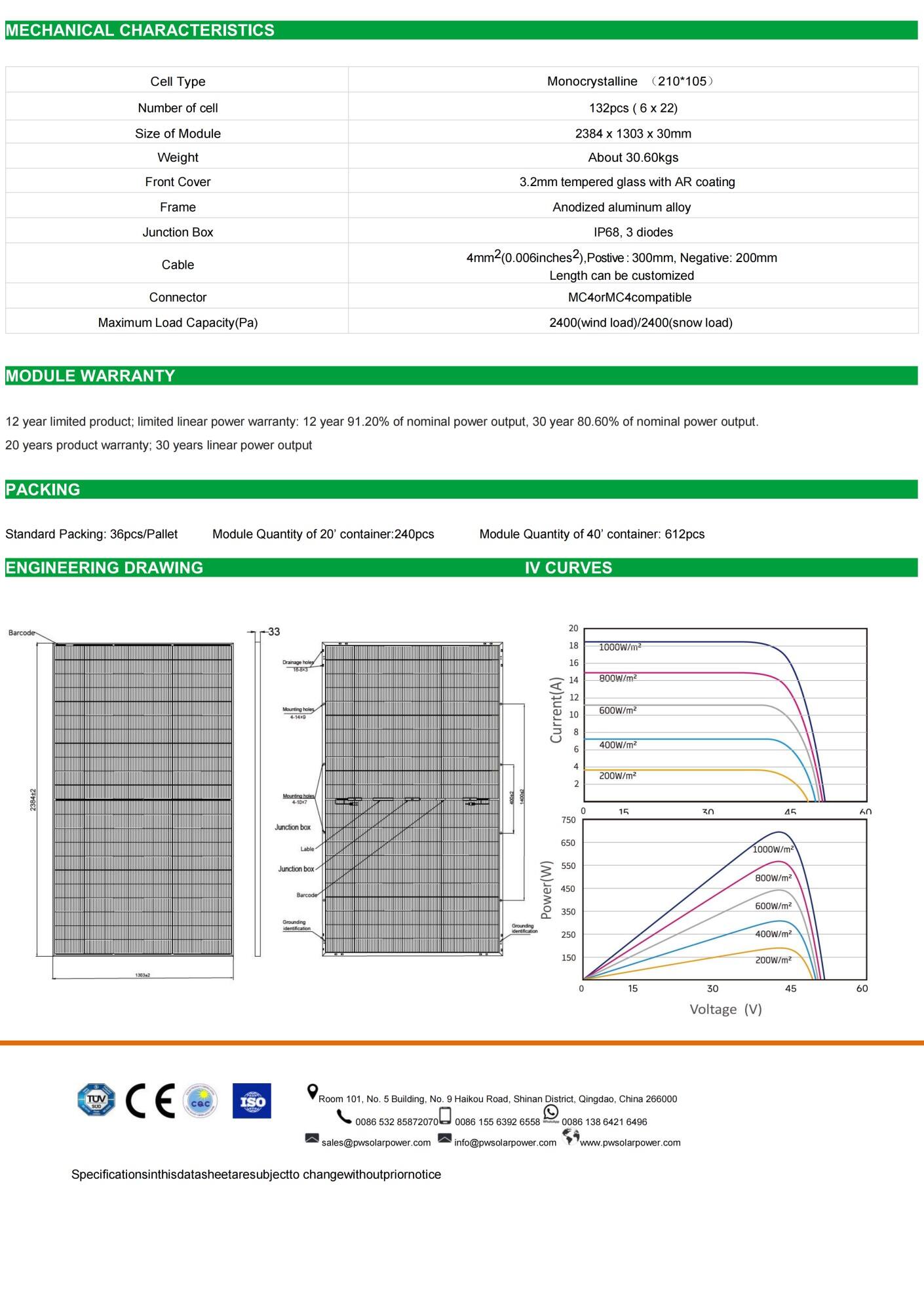

ENGINEERING DRAWING |
IV CURVES |
|
|
Cell Type |
Monocrystalline (210*105) |
|---|---|
Number of cell |
132pcs (6 x 22) |
Size of Module |
2384 x 1303 x 30mm |
Weight |
About 30.60kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP68, 3 diodes |
Cable |
4mm²(0.006inches²), Postive: 300mm, Negative: 200mm |
Connector |
Length can be customized |
Maximum Load Capacity(Pa) |
2400(wind load)/2400(snow load) |
12 year limited product;imited linear power warranty:12 year 91.20%of nominal power output,30 year 80.60%of nominal power output.
20 years product warranty;30 years linear power output
Standard Packing:36pcs/Pallet Module Quantity of 20'container:240pcs Module Quantity of 40'container:612pcs

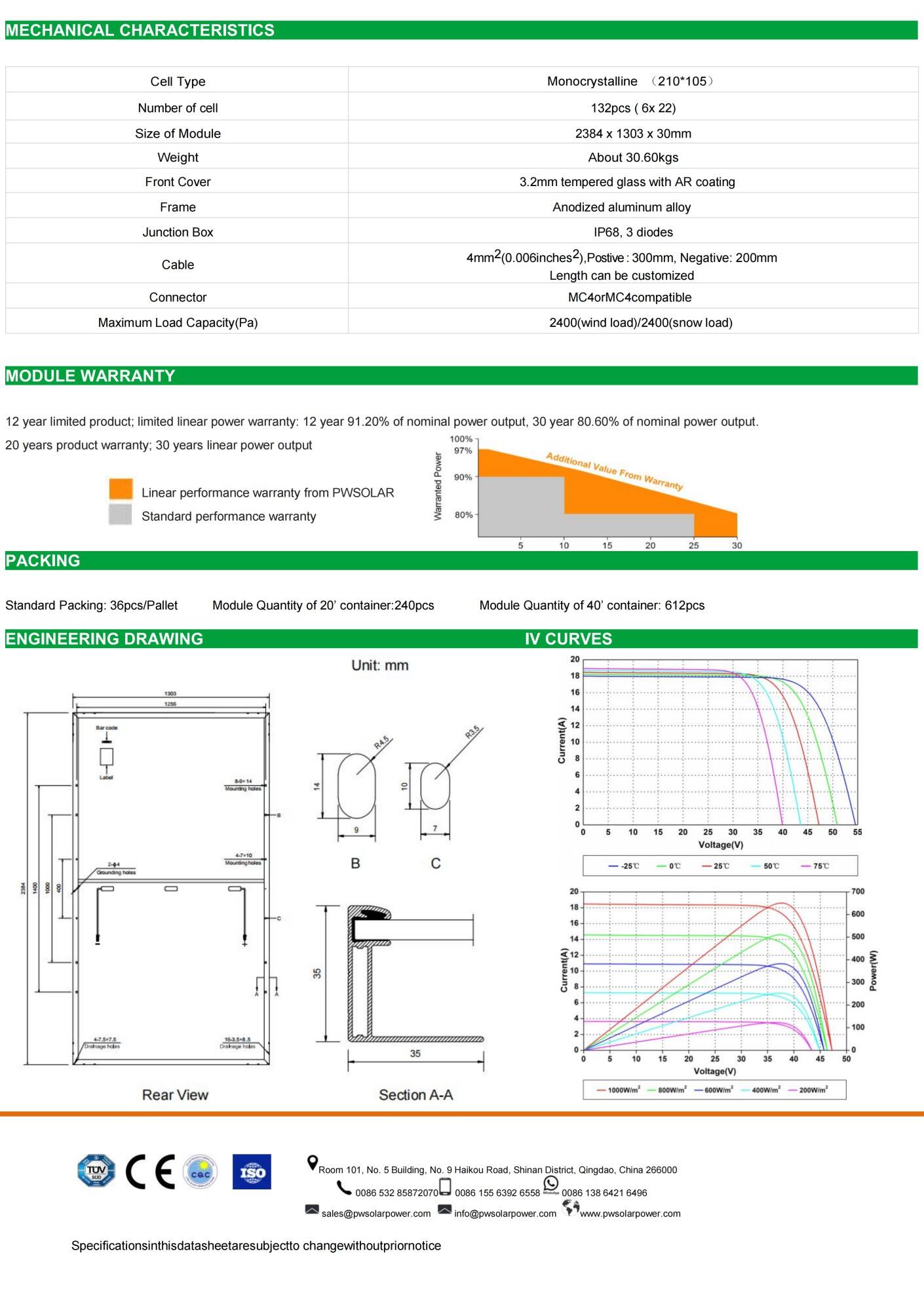

ENGINEERING DRAWING |
IV CURVES |
|
|
