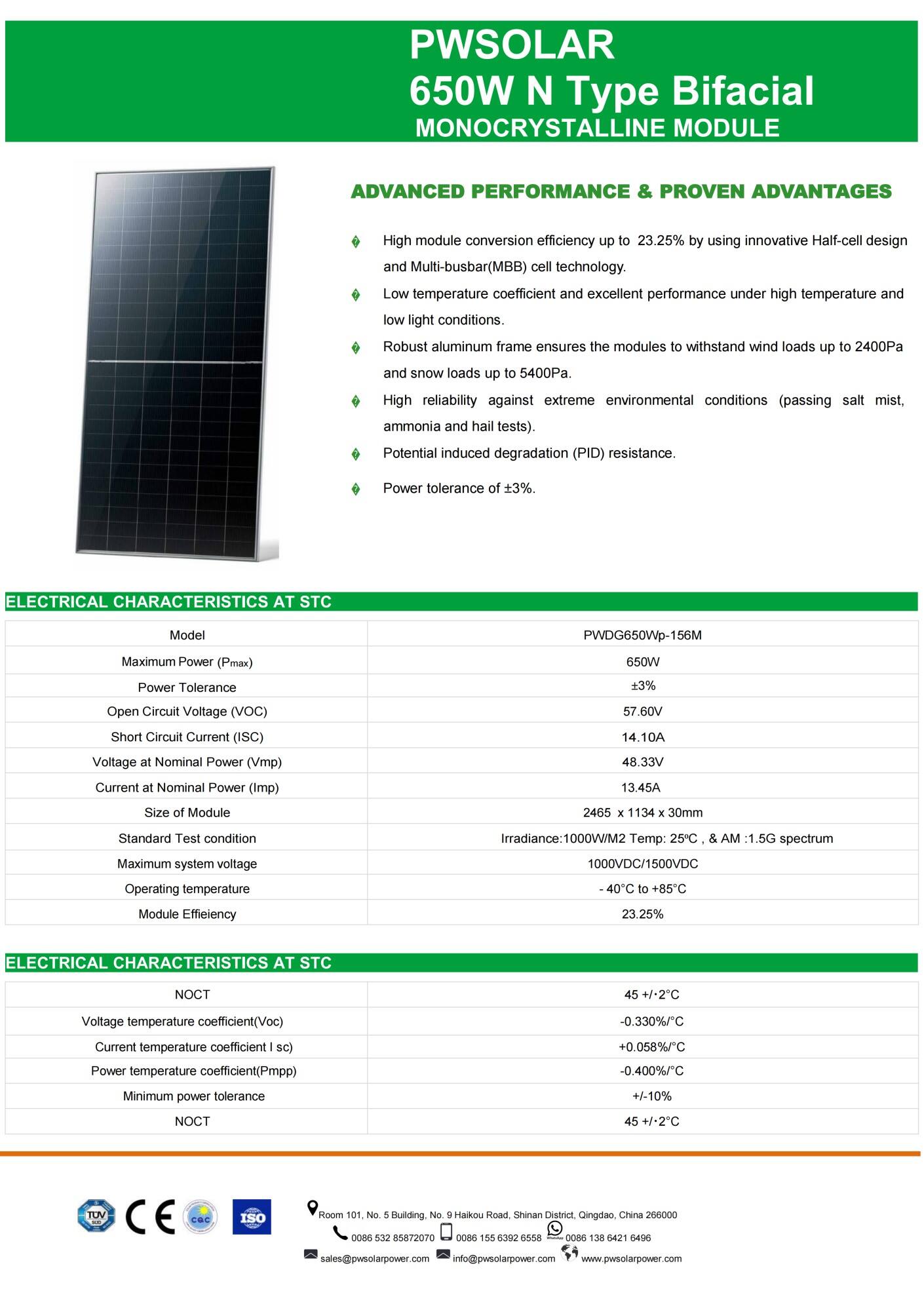

ADVANCED PERFORMANCE & PROVEN ADVANTAGES
◆ High module conversion efficiency up to 23.25% by using innovative Half-cell design and Multi-busbar(MBB) cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation (PID) resistance. ◆ Power tolerance of ±3%. |
Model |
PWDG650Wp-156M |
Maximum Power (Pmax) |
650W |
Power Tolerance |
±3% |
Open Circuit Voltage (VOC) |
57.60V |
Short Circuit Current (ISC) |
14.10A |
Voltage at Nominal Power (Vmp) |
48.33V |
Current at Nominal Power (Imp) |
13.45A |
Size of Module |
2465 x 1134 x 30mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Effieiency |
23.25% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |
Cell Type |
Monocrystalline |
Number of cell |
156pcs ( 78 x 2) |
Size of Module |
2465 x 1134 x 30mm |
Weight |
About 34.00kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP68, 3 diodes |
Cable |
4mm2 (0.006inches2), (+): 400mm (-): 200mm/Customized |
Connector |
MC4 or MC4 compatible |
30-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 12-year limited warranty of materials and workmanship.
Standard Packing: 36pcs/Pallet Module Quantity of 20’ container: 180pcs Module Quantity of 40’ container: 576pcs

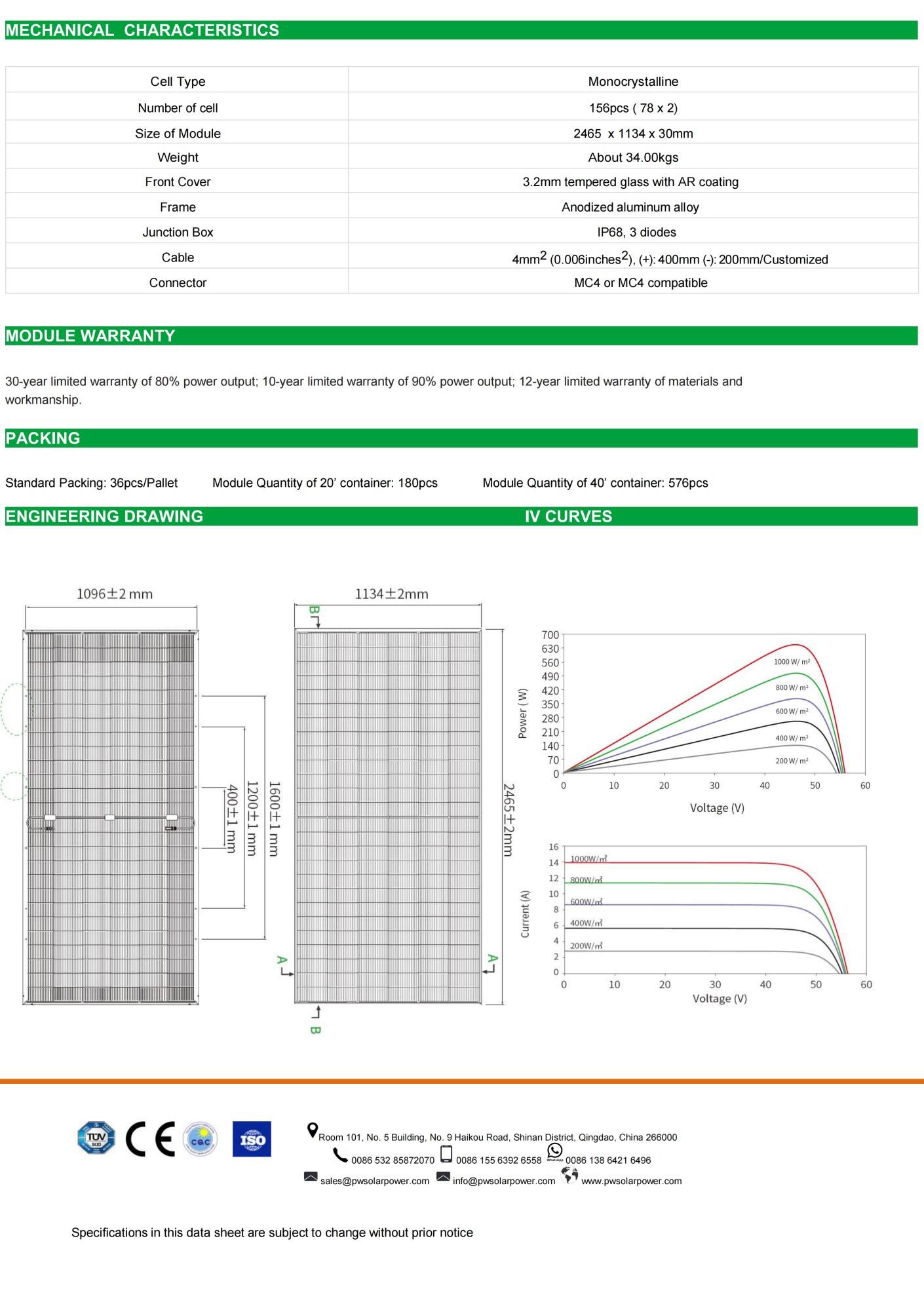

| ENGINEERING DRAWING | IV CURVES |
 |
|
