ADVANCED PERFORMANCE& PROVEN ADVANTAGES
◆ Highmoduleconversionefficiencyupto 20.78% byusing innovative Half-cell design andMulti-busbar(MBB)celltechnology. ◆ Lowtemperaturecoefficientandexcellentperformanceunderhightemperatureand lowlightconditions. ◆ Robustaluminumframeensuresthemodulestowithstandwindloadsupto2400Pa andsnowloadsupto5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia andhail tests). ◆ Potential induceddegradation(PID) resistance. ◆ Positivepowertoleranceof0 ~+5w. |
Model |
PW80Wp-36M |
Maximum Power (Pmax) |
80W |
Power Tolerance |
0 ~ +5W |
Open Circuit Voltage(VOC) |
22.30V |
Short Circuit Current(ISC) |
5.21A |
Voltage at Nominal Power (Vmp) |
18.00V |
Current at Nominal Power (Imp) |
4.45A |
Size of Module |
840 x 450 x 25mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000V DC |
Operating temperature |
- 40°C to +85°C |
Module Efficiency |
20.78% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |
Cell Type |
Monocrystalline |
Number of cell |
36pcs (4 x 9) |
Size of Module |
770 x 550 x 25mm |
Weight |
About 6.50kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP67, 3 diodes |
Cable |
4mm2(0.006inches2),900mm(11.81inches) |
Connector |
MC4orMC4compatible |
25-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 5-year limited warranty of materials and workmanship.
Standarding Packing: 120pcs/Pallet Module Quantity of 20’ container: 1200pcs Module Quantity of 40’ container: 2700pcs

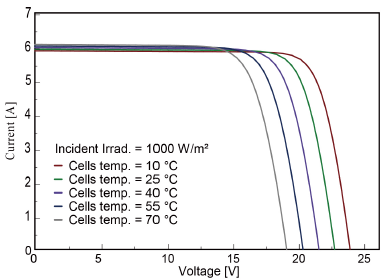

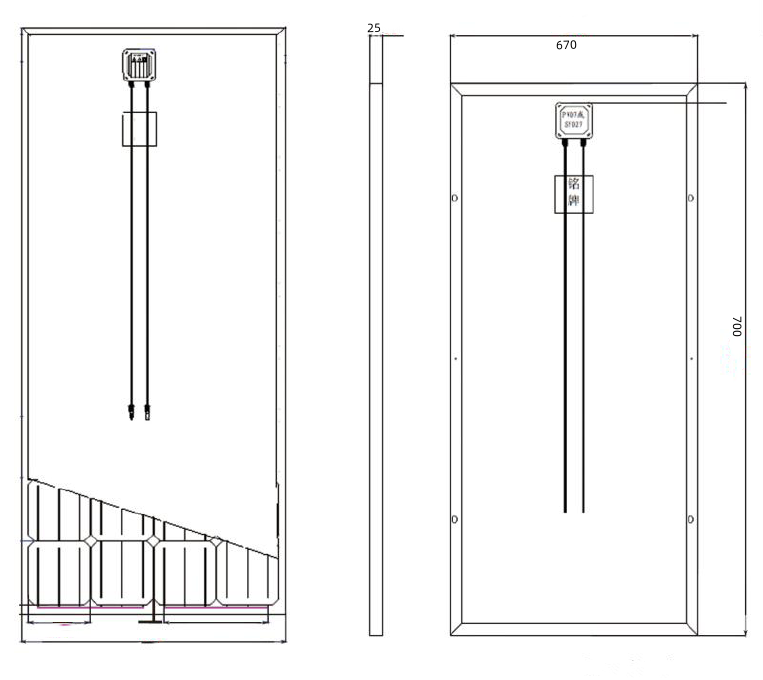

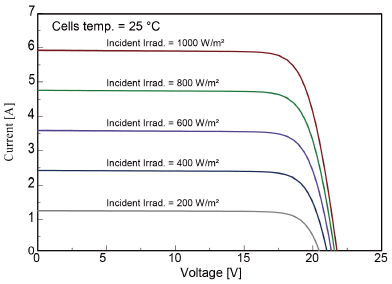

| ENGINEERING DRAWING | IV CURVES |
 |
|
