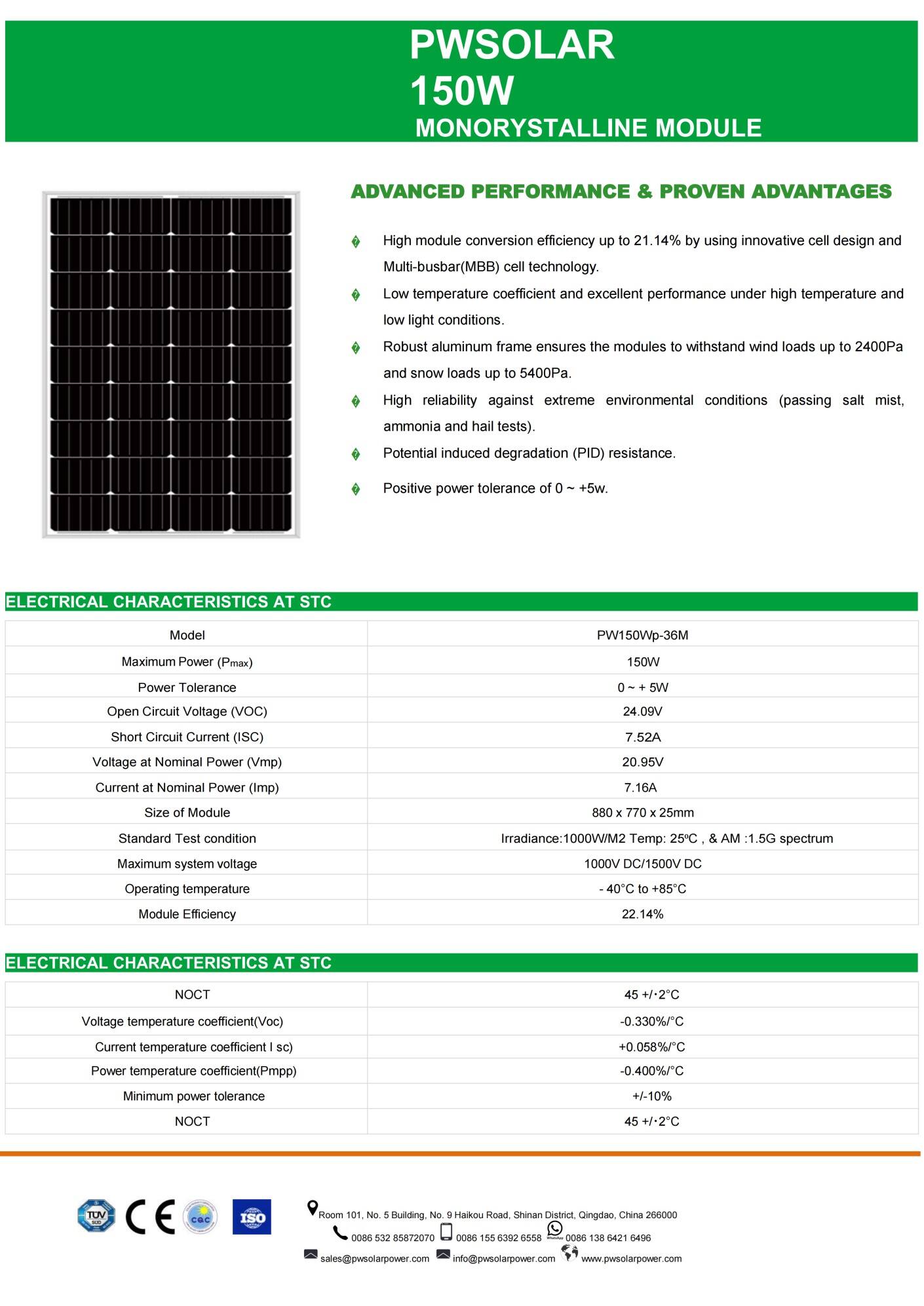

Small watt Solar Panel 150W Solar Panel

ADVANCED PERFORMANCE & PROVEN ADVANTAGES

◆ High module conversion efficiency up to 21.14% by using innovative cell design and Multi-busbar(MBB) cell technology.

◆ Low temperature coefficient and excellent performance under high temperature and low light conditions.

◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.

◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests).

◆ Potential induced degradation (PID) resistance.

◆ Positive power tolerance of 0 ~ +5w.

Model

PW150Wp-36M

Maximum Power (Pmax)

150W

Power Tolerance

0 ~ + 5W

Open Circuit Voltage (VOC)

24.09V

Short Circuit Current (ISC)

7.52A

Voltage at Nominal Power (Vmp)

20.95V

Current at Nominal Power (Imp)

7.16A

Size of Module

880 x 770 x 25mm

Standard Test condition

Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum

Maximum system voltage

1000V DC/1500V DC

Operating temperature

- 40°C to +85°C

Module Efficiency

22.14%

NOCT

45 +/・2°C

Voltage temperature coefficient(Voc)

-0.330%/°C

Current temperature coefficient I sc)

+0.058%/°C

Power temperature coefficient(Pmpp)

-0.400%/°C

Minimum power tolerance

+/-10%

NOCT

45 +/・2°C

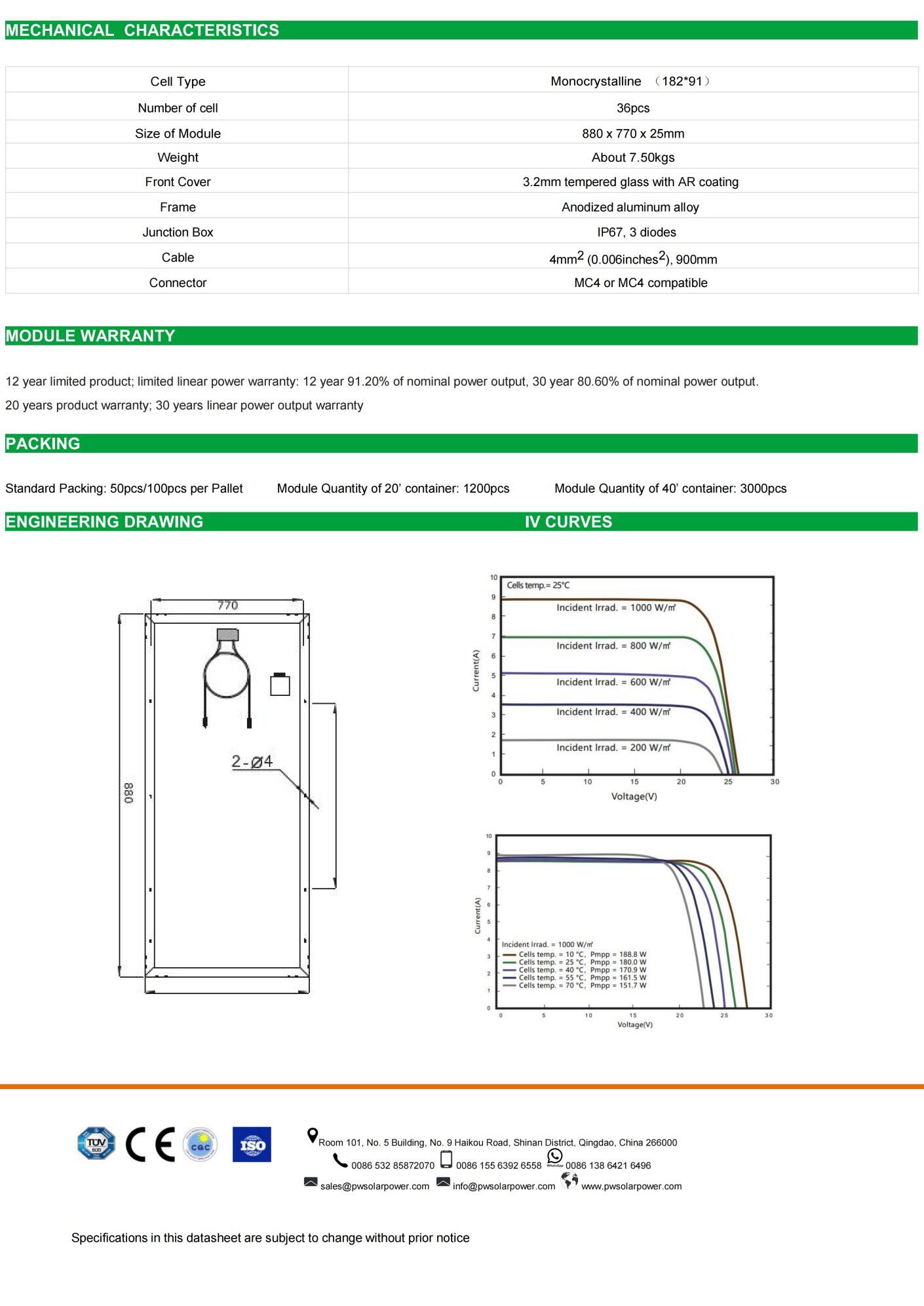

Cell Type

Monocrystalline （182*91）

Number of cell

36pcs

Size of Module

880 x 770 x 25mm

Weight

About 7.50kgs

Front Cover

3.2mm tempered glass with AR coating

Frame

Anodized aluminum alloy

Junction Box

IP67, 3 diodes

Cable

4mm2 (0.006inches2), 900mm

Connector

MC4 or MC4 compatible
