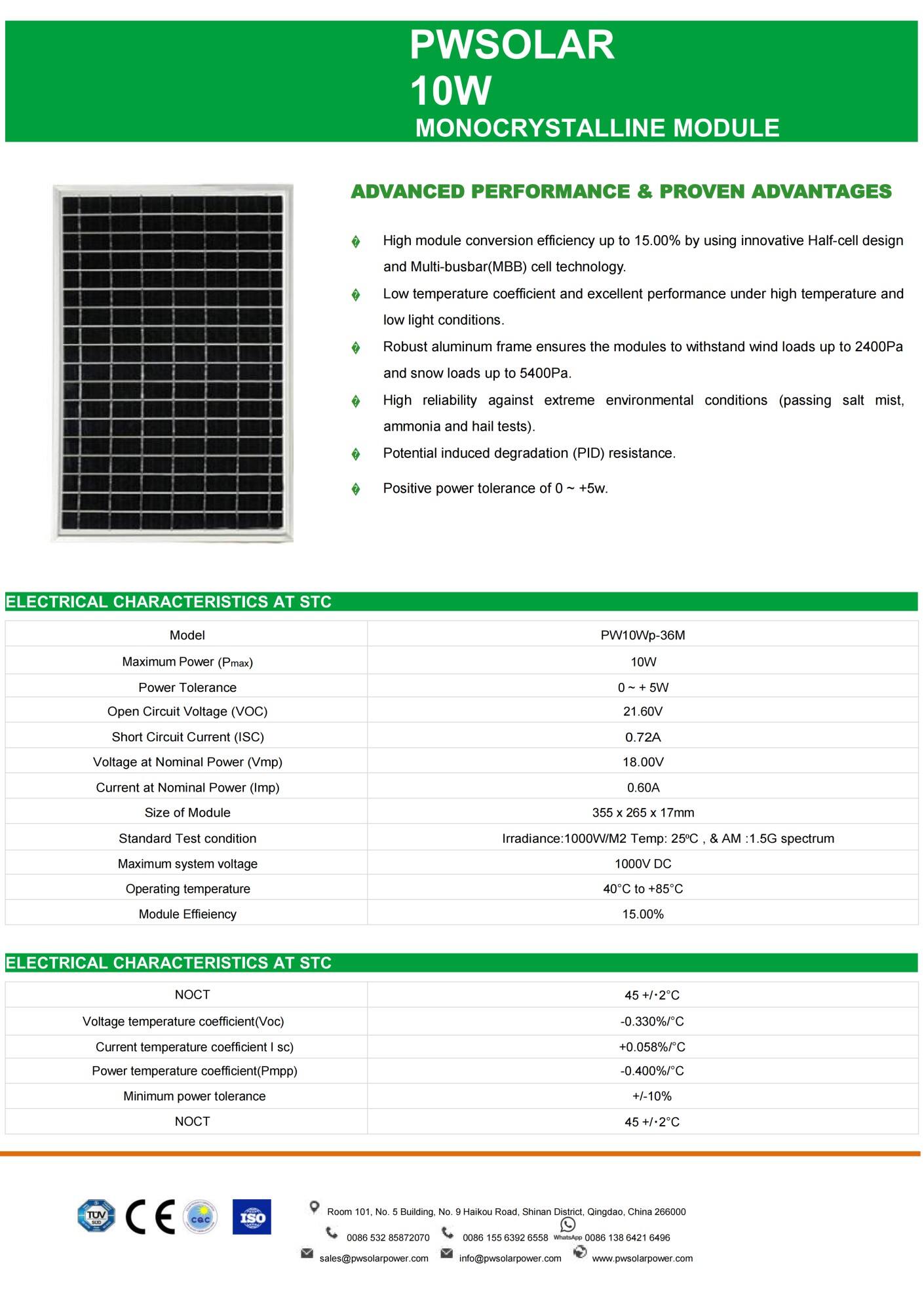

ADVANCED PERFORMANCE & PROVEN ADVANTAGES
◆ High module conversion efficiency up to 15.00% by using innovative Half-cell design and Multi-busbar(MBB) cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation (PID) resistance. ◆ Positive power tolerance of 0 ~ +5w. |
Model |
PW10Wp-36M |
Maximum Power (Pmax) |
10W |
Power Tolerance |
0 ~ + 5W |
Open Circuit Voltage (VOC) |
21.60V |
Short Circuit Current (ISC) |
0.72A |
Voltage at Nominal Power (Vmp) |
18.00V |
Current at Nominal Power (Imp) |
0.60A |
Size of Module |
355 x 265 x 17mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000V DC |
Operating temperature |
40°C to +85°C |
Module Effieiency |
15.00% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |

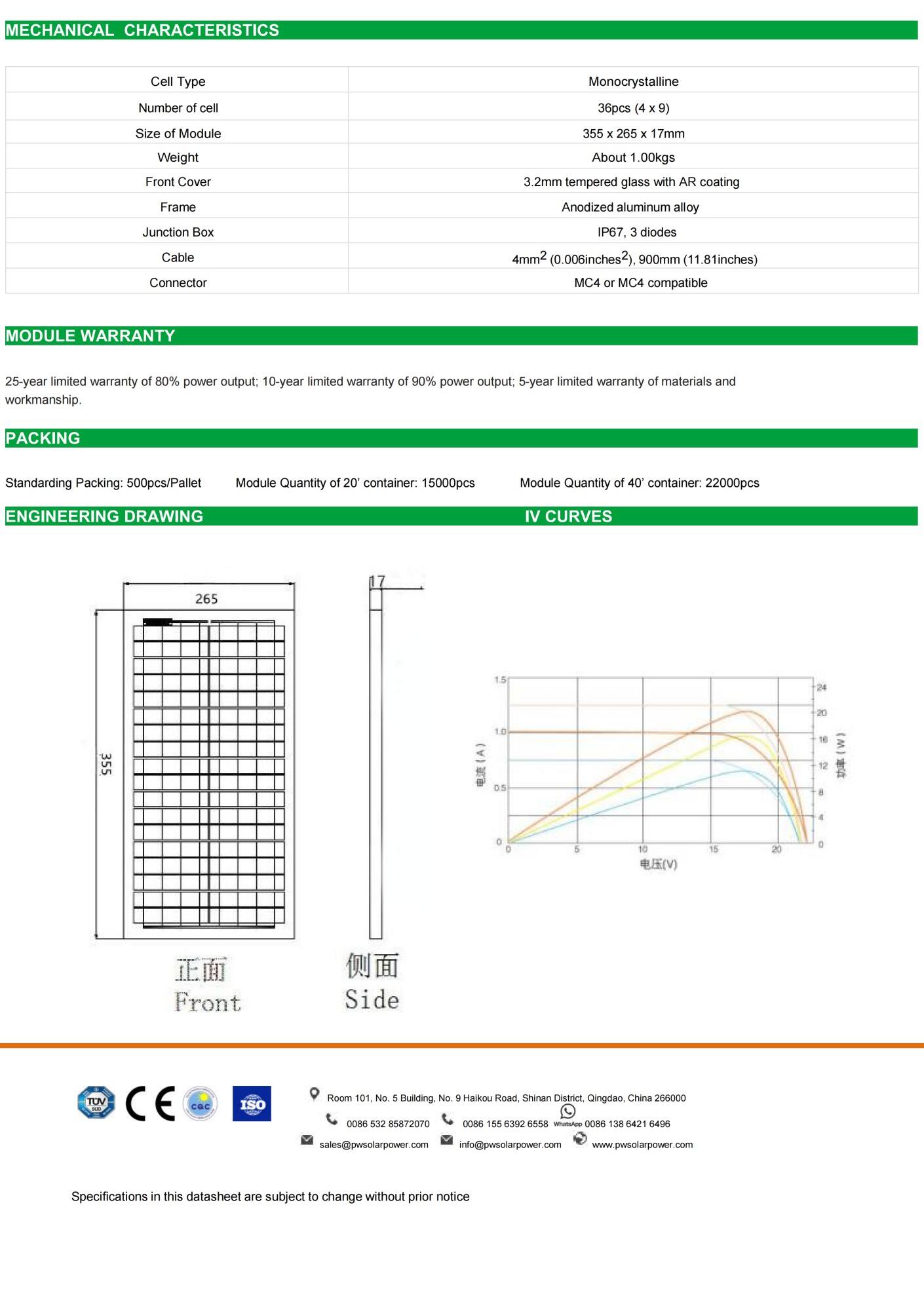

Cell Type |
Monocrystalline |
Number of cell |
36pcs (4 x 9) |
Size of Module |
355 x 265 x 17mm |
Weight |
About 1.00kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP67, 3 diodes |
Cable |
4mm2 (0.006inches2), 900mm (11.81inches) |
Connector |
MC4 or MC4 compatible |
25-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 5-year limited warranty of materials and workmanship.
Standarding Packing: 500pcs/Pallet Module Quantity of 20’ container: 15000pcs Module Quantity of 40’ container: 22000pcs

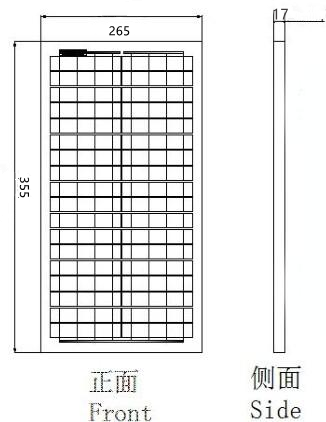

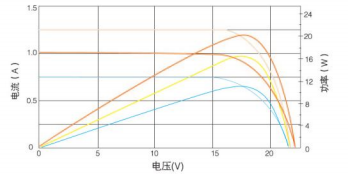

| ENGINEERING DRAWING | IV CURVES |
 |
 |
