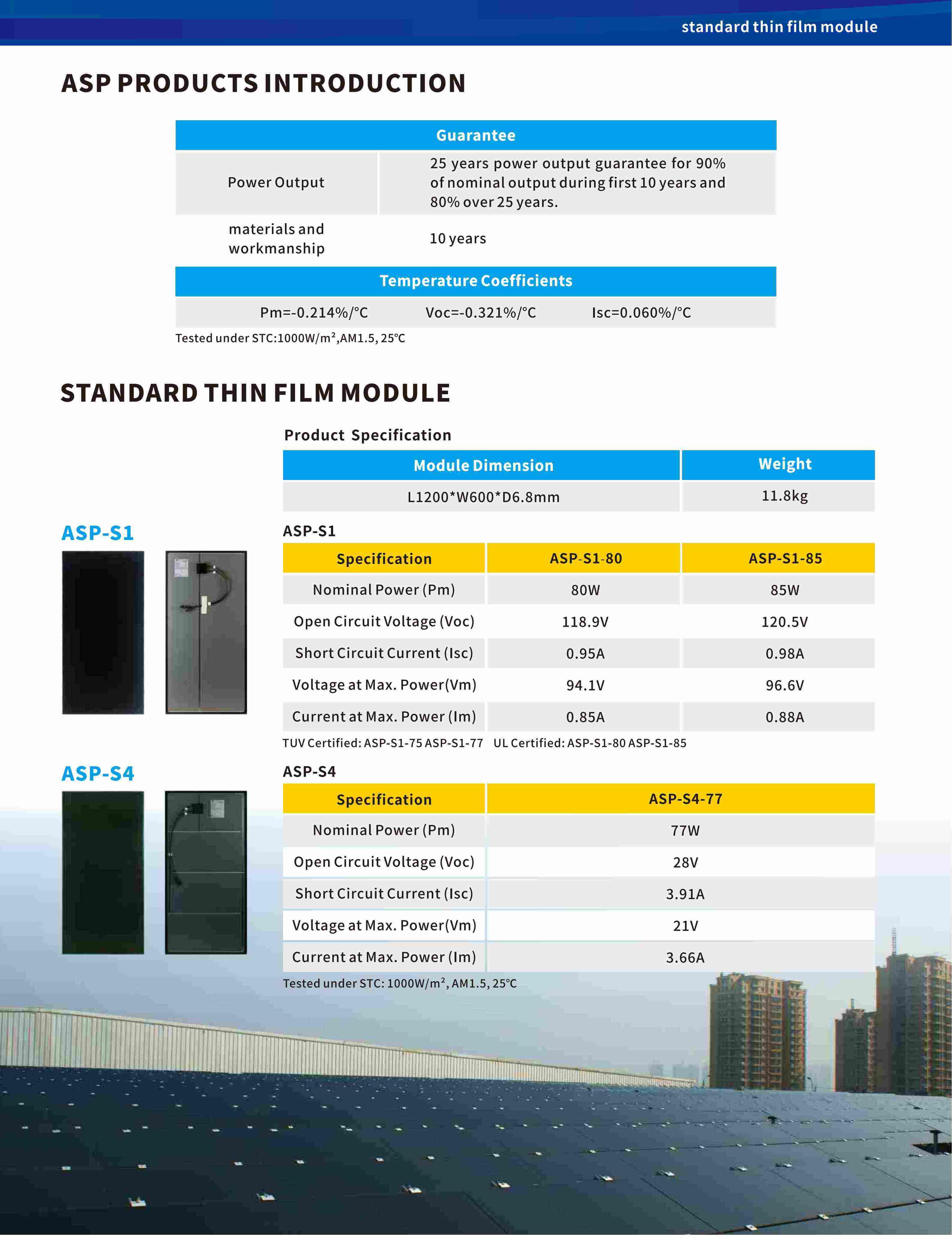

80W 85W 77W Thin Film Solar Panel

Guarantee

Power Output

25 years power output guarantee for 90%

of nominal output during first 10 years and

80%over25 years.

materials and

workmanship

10 years

Temperature Coefficients

Pm=-0.214%1°℃

Voc=-0.321%1°℃

Isc=0.060%1°℃

Tested under STC:1000W/m²,AM1.5,25℃

Module Dimension

Weight

L1200*W600*D6.8mm

11.8kg

Specification

ASP-S1-80

ASP-S1-85

Nominal Power (Pm)

80 W

85 W

Open Circuit Voltage (Voc)

118.9 V

120.5 V

Short Circuit Current (Isc)

0.95 A

0.98 A

Voltage at Max. Power (Vm)

94.1 V

96.6 V

Current at Max. Power (Im)

0.85 A

0.88 A

Specification

ASP-S4-77

Nominal Power (Pm)

77 W

Open Circuit Voltage (Voc)

28 V

Short Circuit Current (Isc)

3.91 A

Voltage at Max. Power (Vm)

21 V

Current at Max. Power (Im)

3.66 A
