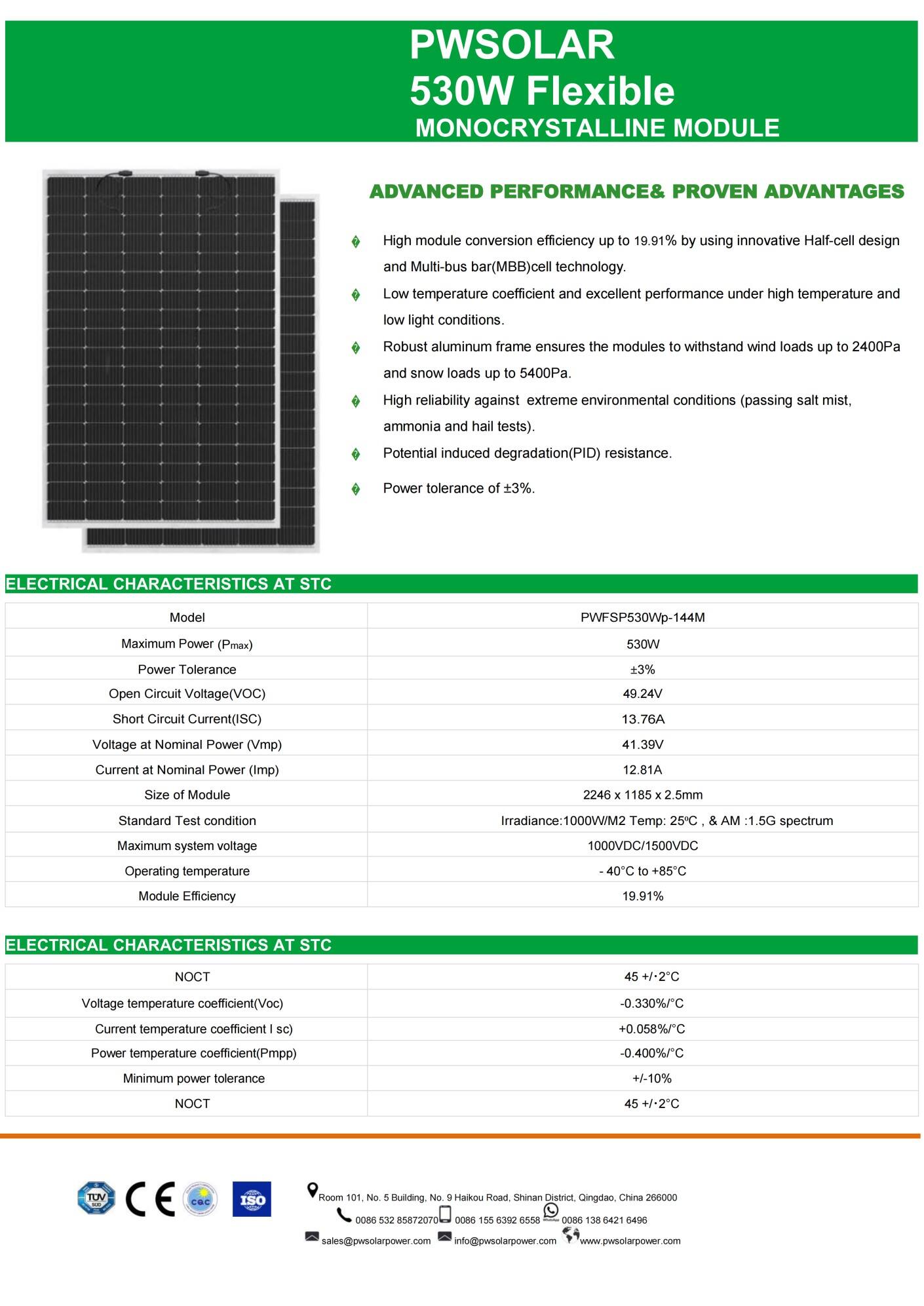

ADVANCED PERFORMANCE& PROVEN ADVANTAGES
◆ High module conversion efficiency up to 19.91% by using innovative Half-cell design and Multi-bus bar(MBB)cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation(PID) resistance. ◆ Power tolerance of ±3%. |
Model |
PWFSP530Wp-144M |
Maximum Power (Pmax) |
530W |
Power Tolerance |
±3% |
Open Circuit Voltage(VOC) |
49.24V |
Short Circuit Current(ISC) |
13.76A |
Voltage at Nominal Power (Vmp) |
41.39V |
Current at Nominal Power (Imp) |
12.81A |
Size of Module |
2246 x 1185 x 2.5mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Efficiency |
19.91% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |
Cell Type |
monocrystalline（182*91mm） |
Number of cell |
144pcs ( 12x 12) |
Size of Module |
2246 x 1185 x 2.5mm |
Weight |
About 8.00kgs |
Front Cover |
Lightweight high transparent polymer materials |
Back Board Color |
White |
Junction Box |
IP67, 3 diodes |
Cable |
4mm2(0.006inches2),Positive : 400mm, Negative: 200mm Length can be customized |
Connector |
MC4 or MC4 compatible |
12 year limited product; limited linear power warranty: 12 year 91.20% of nominal power output, 30 year 80.60% of nominal power output.
20 years product warranty; 30 years linear power output
Standard Packing: 70pcs/Pallet Module Quantity of 20’ container: 300pcs Module Quantity of 40’ container: 700pcs

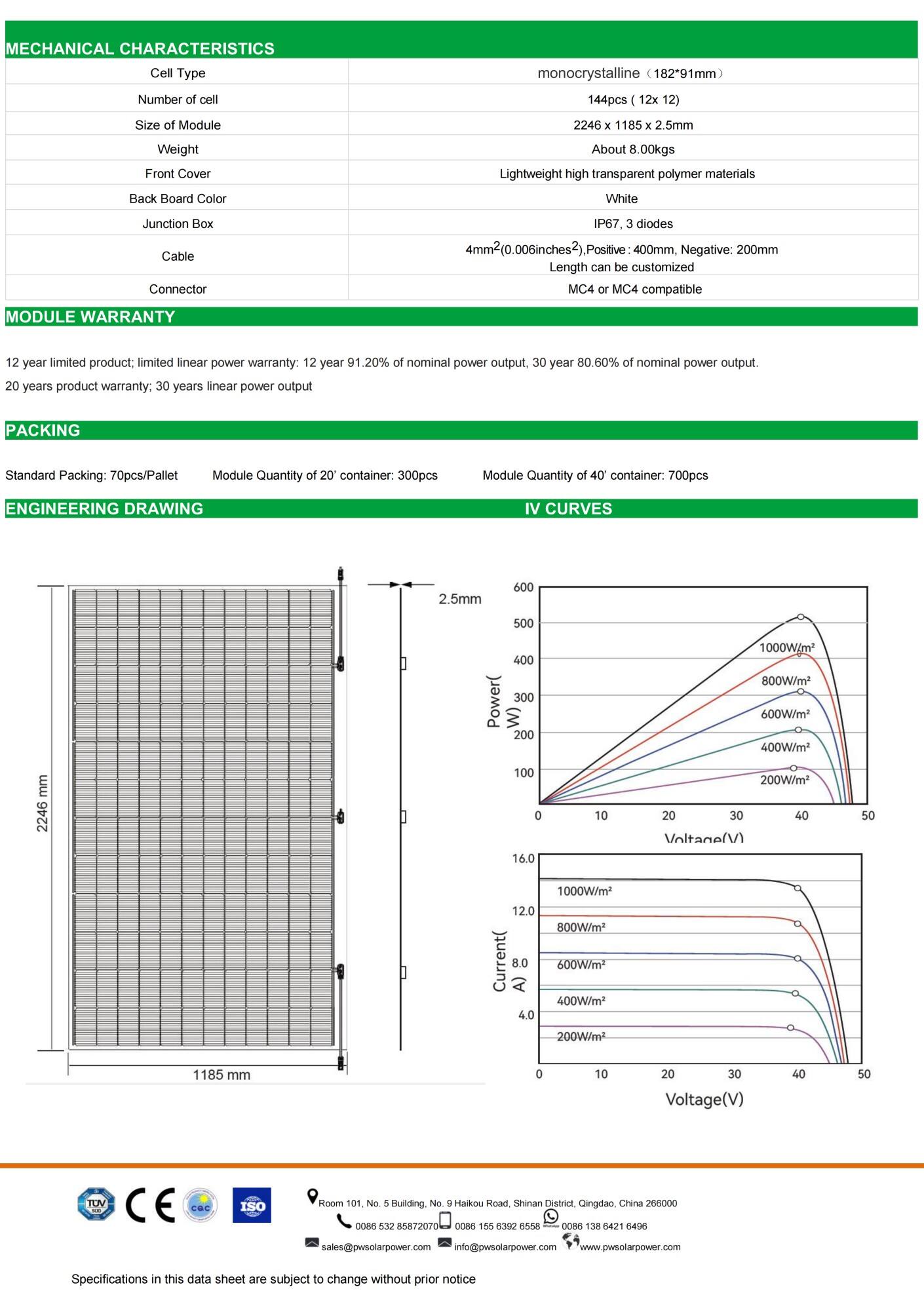

| ENGINEERING DRAWING | IV CURVES |
 |
|
