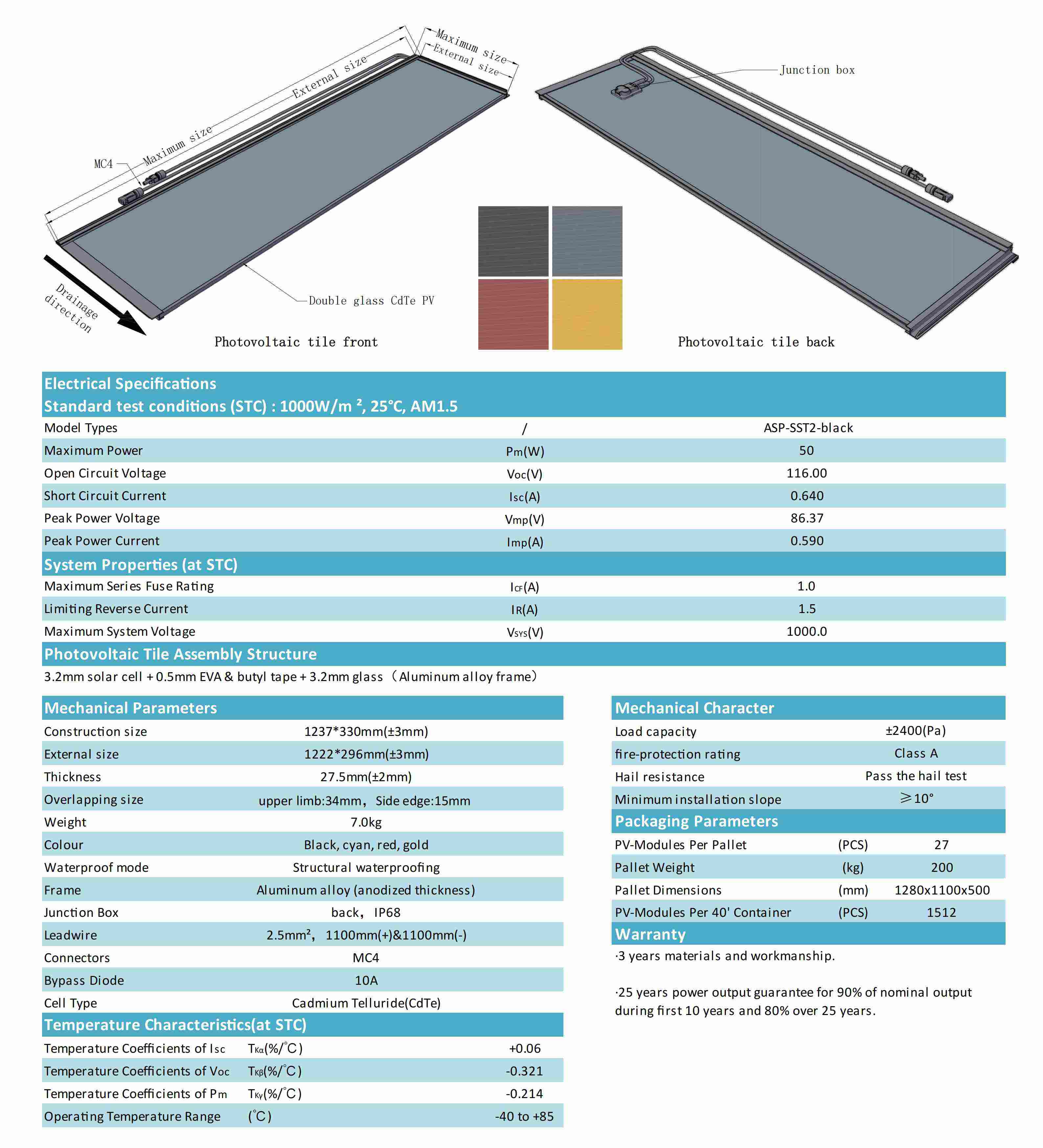

Model Types |
/ |
ASP-SST2-black |
|
Maximum Power Warranty |
Pm(W) |
50 |
Open Circuit Voltage |
Voc(V) |
116.00 |
Short Circuit Current |
Isc(A) |
0.640 |
Peak Power Voltage |
Vmp(V) |
86.37 |
Peak Power Current |
Imp(A) |
0.590 |
Maximum Series Fuse Rating |
1σ (A) |
1.0 |
Limiting Reverse Current |
IR (A) |
1.5 |
Maximum System Voltage |
Vsys (V) |
1000.0 |
3.2mm solar cell + 0.5mm EVA & butyl tape + 3.2mm glass (Aluminum alloy frame)
Mechanical Parameters

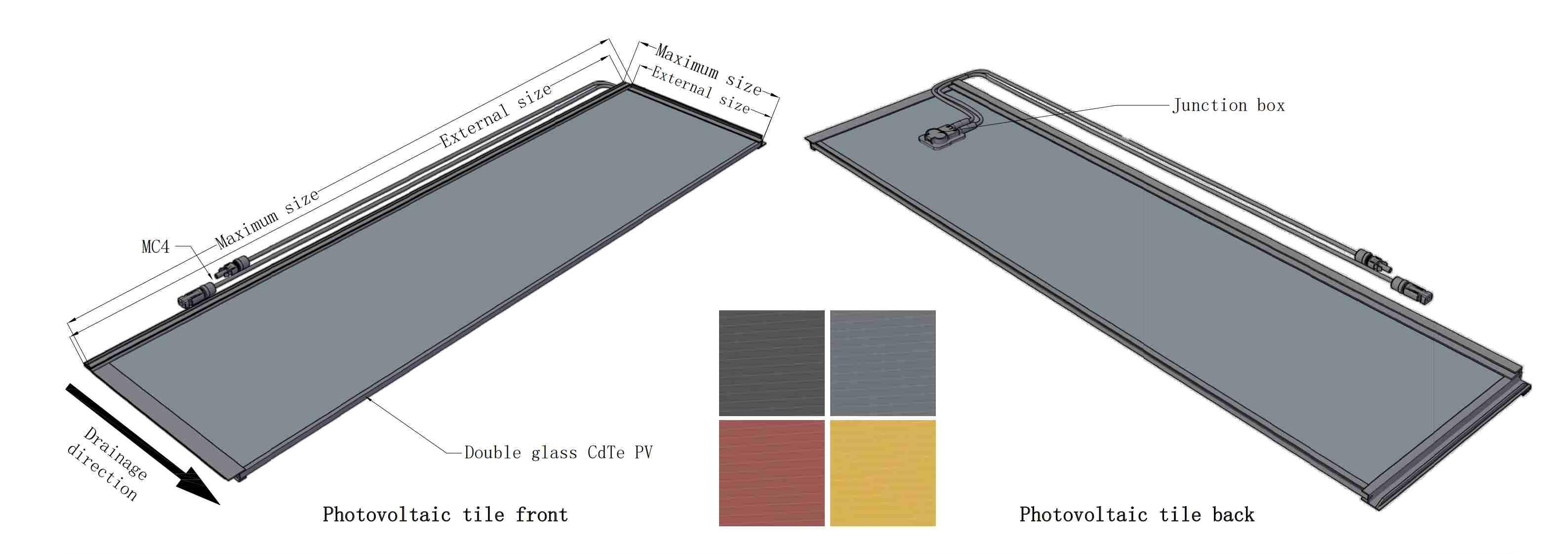

Construction size |
1237*330mm(±3mm) |
External size |
1222*296mm(±3mm) |
Thickness |
27.5mm(±2mm) |
Overlapping size |
upper limb:34mm, Side edge:15mm |
Weight |
7.0kg |
Colour |
Black, cyan, red, gold |
Waterproof mode |
Structural waterproofing |
Frame |
Aluminum alloy (anodized thickness) |
Junction Box |
back, IP68 |
Leadwire |
2.5mm², 1100mm(+)/1100mm(-) |
Connectors |
MC4 |
Bypass Diode |
10A |
Cell Type |
Cadmium Telluride(CdTe) |
Temperature Coefficient of Isc (TKα, %/°C) |
+0.06 |
Temperature Coefficient of Voc (TKβ, %/°C) |
-0.321 |
Temperature Coefficient of Pn (TKγ, %/°C) |
-0.214 |
Operating Temperature Range (°C) |
-40 to +85 |
Load capacity |
±2400(Pa) |
fire-protection rating |
Class A |
Hail resistance |
Pass the hail test |
Minimum installation slope |
≥10° |
PV-Modules Per Pallet (PCS) |
27 |
Pallet Weight (kg) |
200 |
Pallet Dimensions (mm) |
1280x1100x500 |
PV-Modules Per 40' Container (PCS) |
1512 |
3 years materials and workmanship.
25 years power output guarantee for 90% of nominal output during first 10 years and 80% over 25 years.
