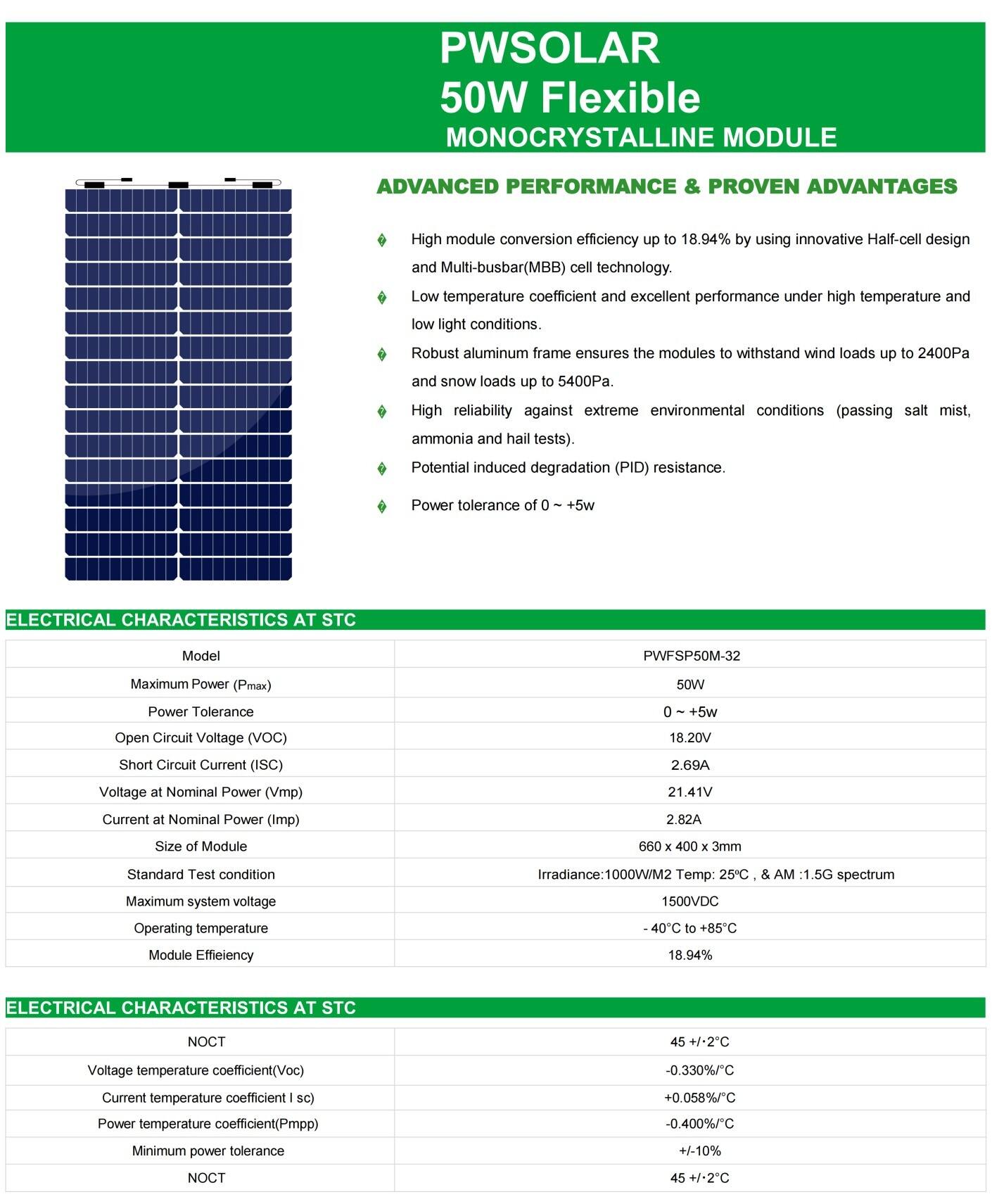

ADVANCED PERFORMANCE & PROVEN ADVANTAGES
◆ High module conversion efficiency up to 18.94% by using innovative Half-cell design and Multi-busbar(MBB) cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation (PID) resistance. ◆ Power tolerance of 0 ~ +5w |
Model |
PWFSP50M-32 |
Maximum Power (Pmax) |
50W |
Power Tolerance |
0 ~ +5w |
Open Circuit Voltage (VOC) |
18.20V |
Short Circuit Current (ISC) |
2.69A |
Voltage at Nominal Power (Vmp) |
21.41V |
Current at Nominal Power (Imp) |
2.82A |
Size of Module |
660 x 400 x 3mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Effieiency |
18.94% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |

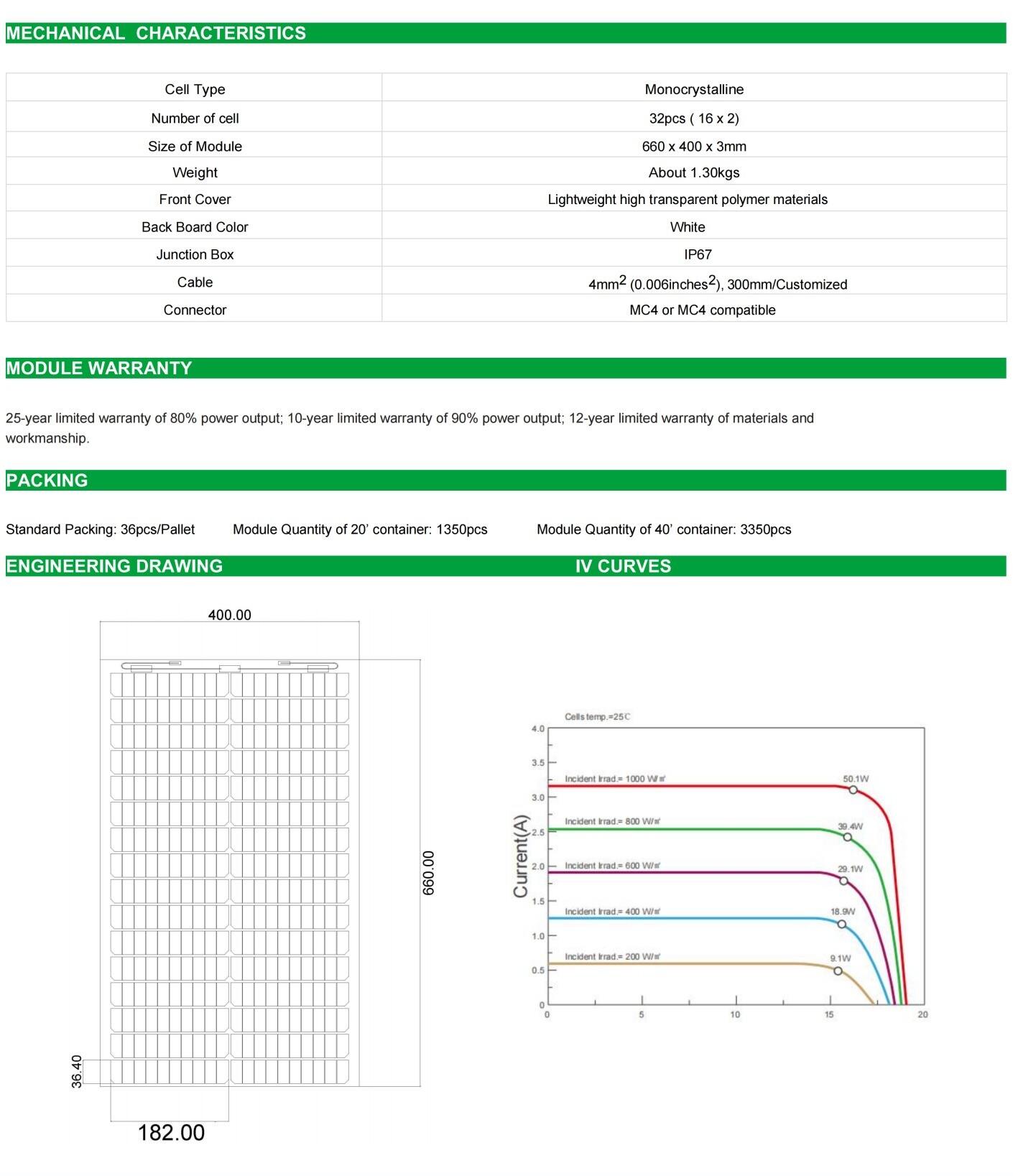

Cell Type |
Monocrystalline |
Number of cell |
32pcs ( 16 x 2) |
Size of Module |
660 x 400 x 3mm |
Weight |
About 1.30kgs |
Front Cover |
Lightweight high transparent polymer materials |
Back Board Color |
White |
Junction Box |
IP67 |
Cable |
4mm2 (0.006inches2), 300mm/Customized |
Connector |
MC4 or MC4 compatible |
25-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 12-year limited warranty of materials and workmanship.
Standard Packing: 36pcs/Pallet Module Quantity of 20’ container: 1350pcs Module Quantity of 40’ container: 3350pcs

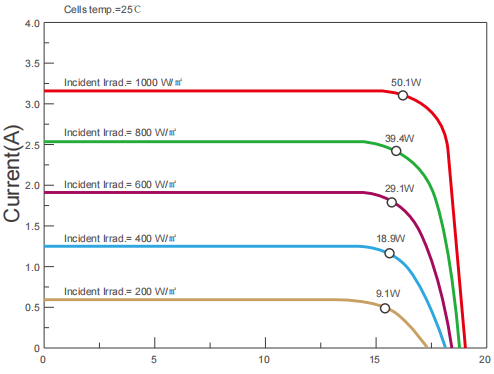

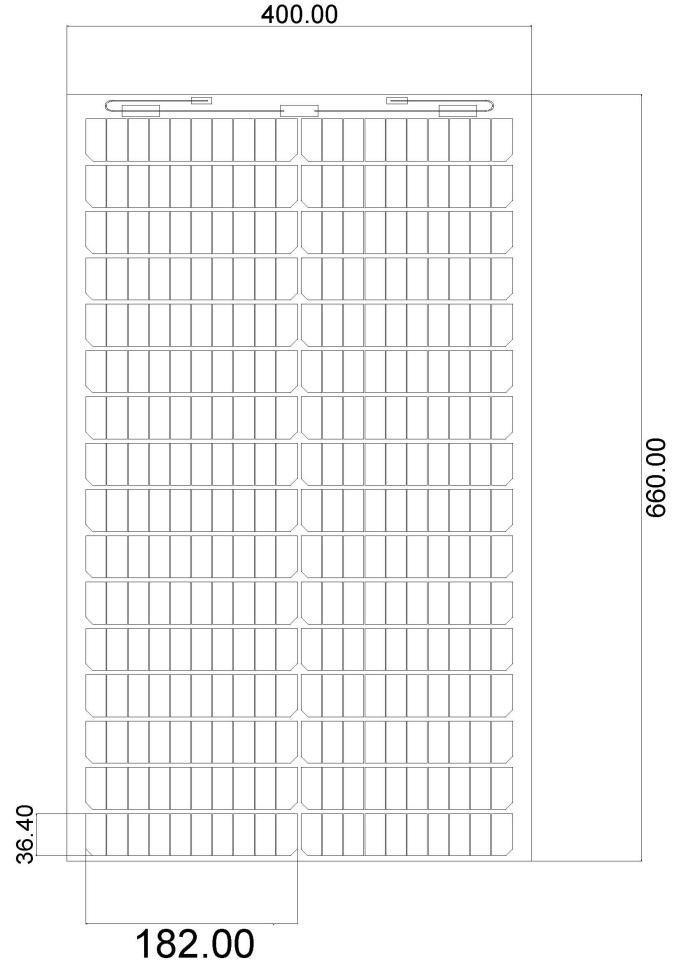

| ENGINEERING DRAWING | IV CURVES |
 |
 |
