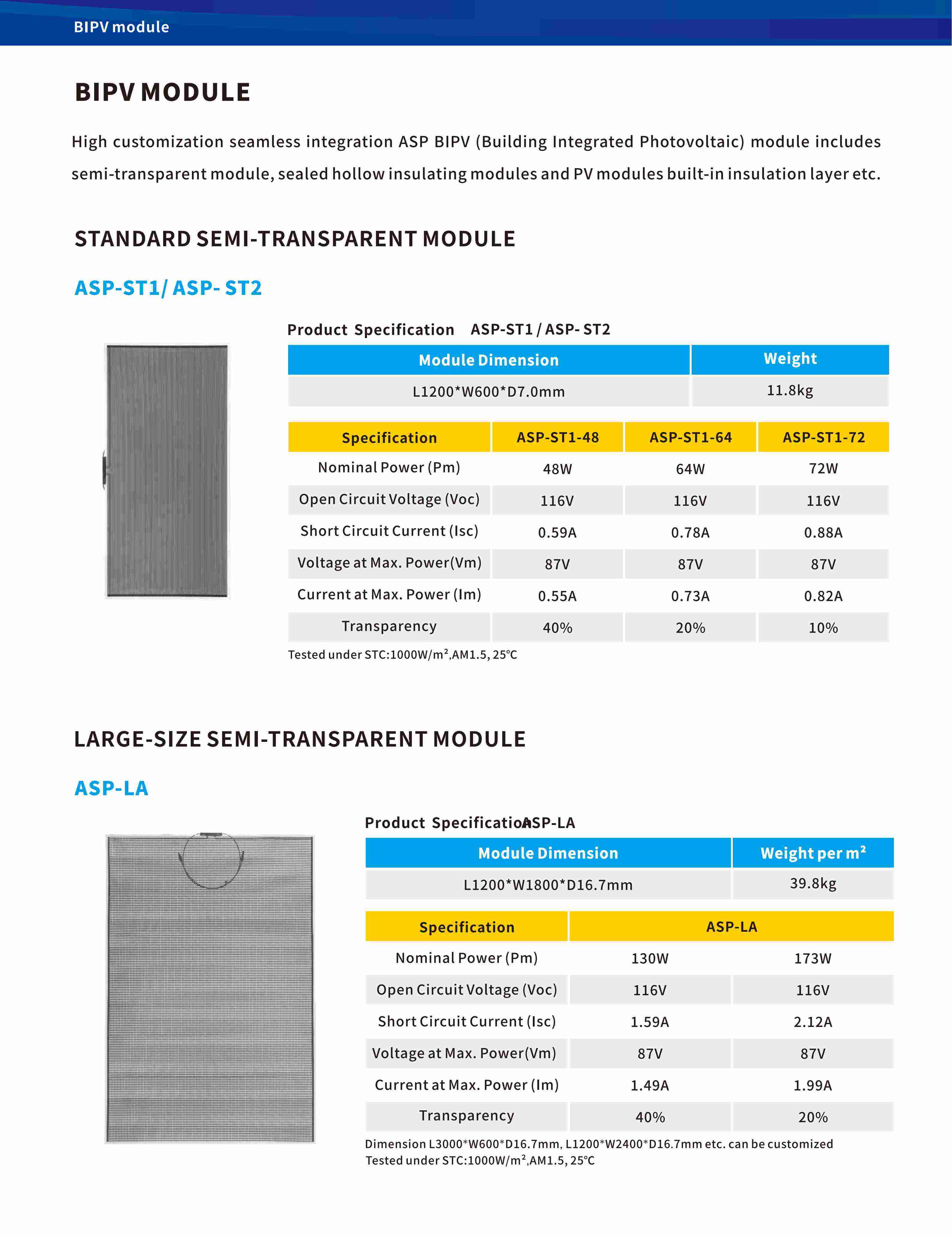

BIPV MODULE
High customization seamless integration ASP BIPV(Building Integrated Photovoltaic)module includes semi-transparent module,sealed hollowinsulating modules and PVmodules built-in insulation layeretc.
STANDARD SEMI-TRANSPARENT MODULE
ASP-ST1/ASP-ST2
 |
Product Specification ASP-ST1/ASP-ST2
Module Dimension |
Weight |
L1200*W600*D7.0mm |
11.8kg |
Specification |
ASP-ST1-48 |
ASP-ST1-64 |
ASP-ST1-72 |
Nominal Power (Pm) |
48W |
64W |
72W |
Open Circuit Voltage (Voc) |
116V |
116V |
116V |
Short Circuit Current (Isc) |
0.59A |
0.78A |
0.88A |
Voltage at Max. Power (Vm) |
87V |
87V |
87V |
Current at Max. Power (Im) |
0.55A |
0.73A |
0.82A |
Transparency |
40% |
20% |
10% |
Tested under STC:1000W/m²,AM1.5,25℃
|
LARGE-SIZE SEMI-TRANSPARENT MODULE
ASP-LA
 |
Product SpecificatioASP-LA
Module Dimension |
Weight per m² |
L1200*W1800*D16.7mm |
39.8kg |
Specification |
ASP-LA |
Nominal Power (Pm) |
130W |
173W |
Open Circuit Voltage (Voc) |
116V |
116V |
Short Circuit Current (Isc) |
1.59A |
2.12A |
Voltage at Max. Power(Vm) |
87V |
87V |
Current at Max. Power (Im) |
1.49A |
1.99A |
Transparency |
40% |
20% |
Dimension L3000*W600*D16.7mm,L1200*W2400*D16.7mm etc.can be customized Tested under STC:1000W/m²,AM1.5,25℃
|
