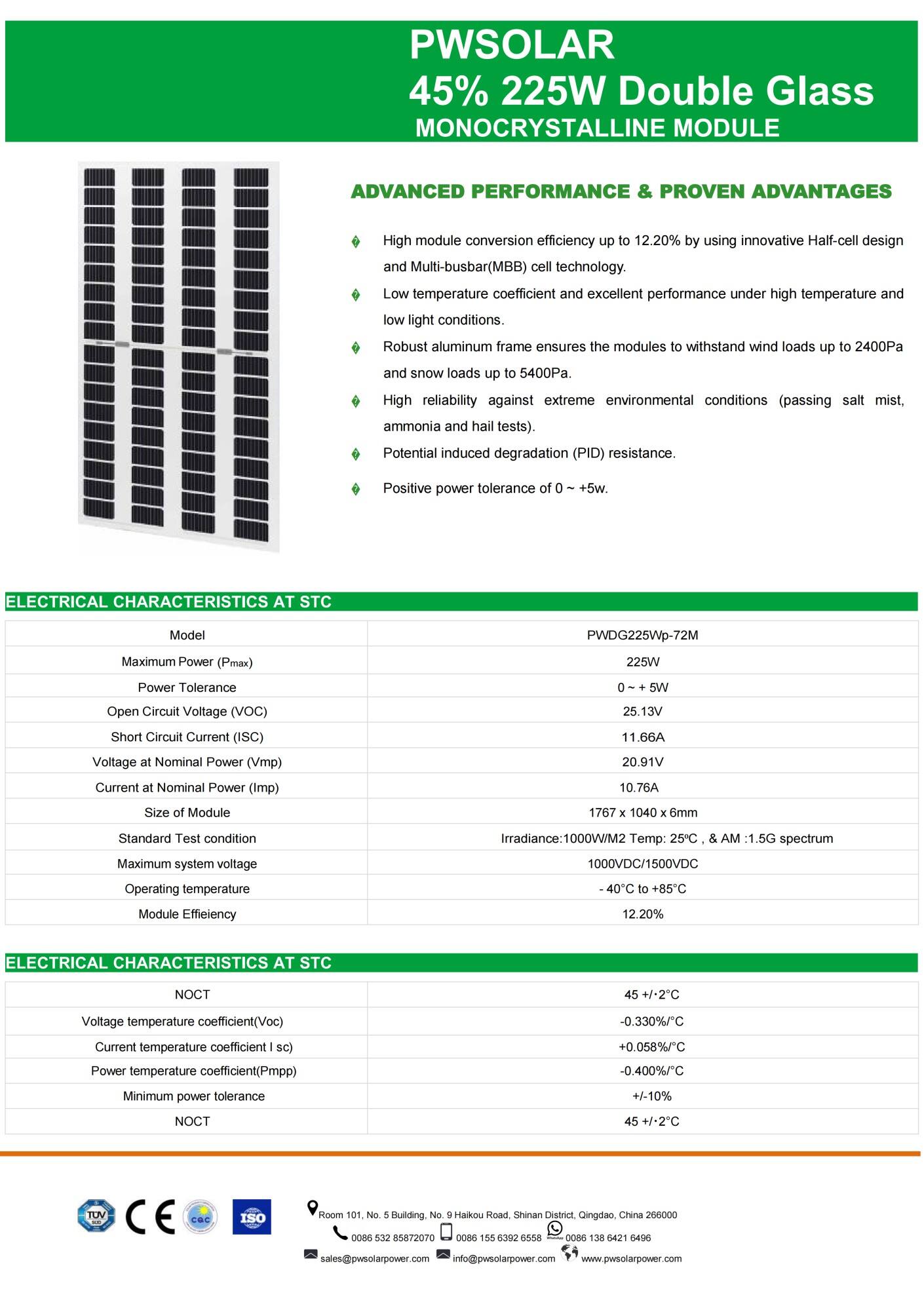

ADVANCED PERFORMANCE & PROVEN ADVANTAGES
◆ High module conversion efficiency up to 12.20% by using innovative Half-cell design and Multi-busbar(MBB) cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation (PID) resistance. ◆ Positive power tolerance of 0 ~ +5w. |
Model |
PWDG225Wp-72M |
Maximum Power (Pmax) |
225W |
Power Tolerance |
0 ~ + 5W |
Open Circuit Voltage (VOC) |
25.13V |
Short Circuit Current (ISC) |
11.66A |
Voltage at Nominal Power (Vmp) |
20.91V |
Current at Nominal Power (Imp) |
10.76A |
Size of Module |
1767 x 1040 x 6mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Effieiency |
12.20% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |

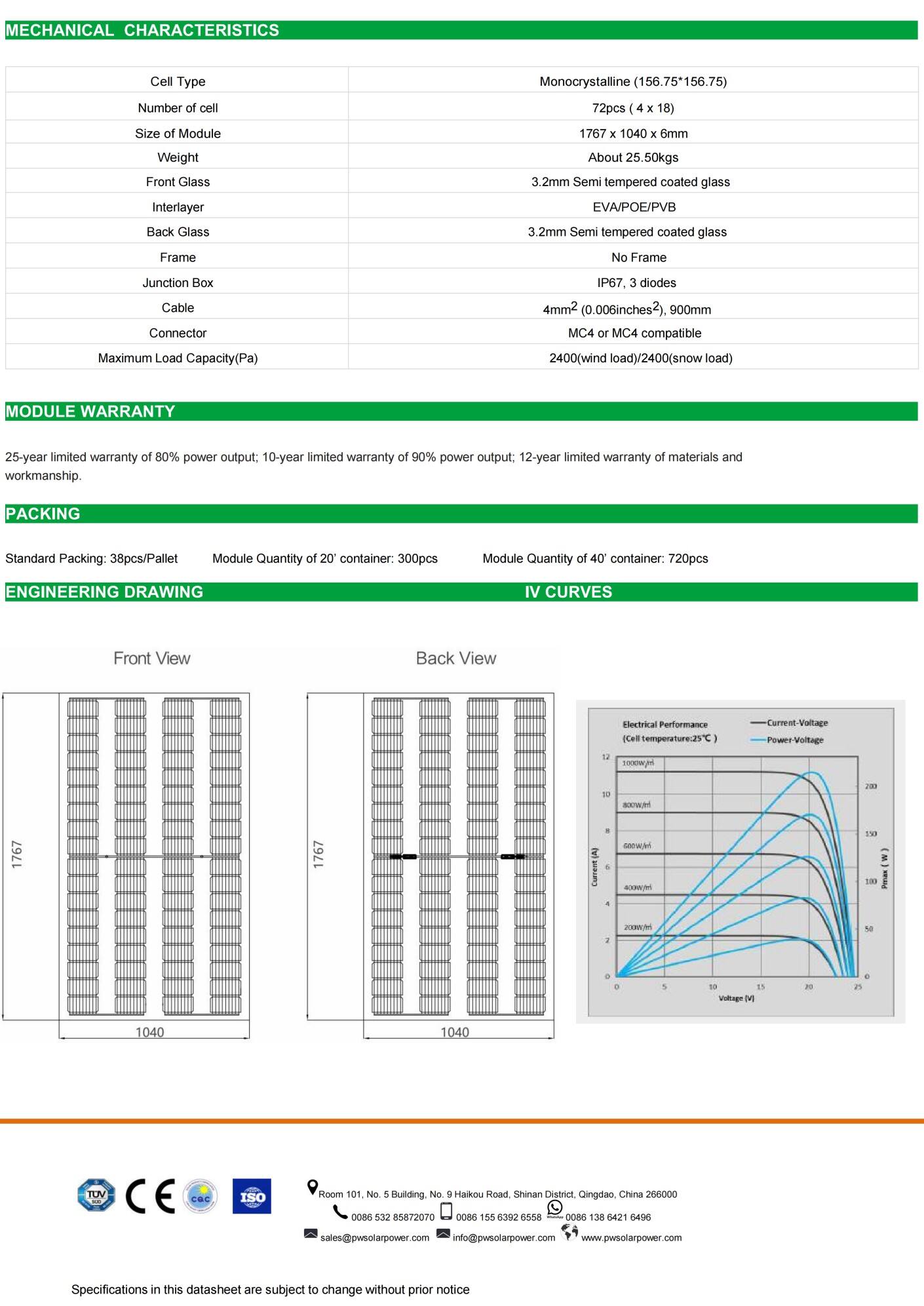

Cell Type |
Monocrystalline (156.75*156.75) |
Number of cell |
72pcs ( 4 x 18) |
Size of Module |
1767 x 1040 x 6mm |
Weight |
About 25.50kgs |
Front Glass |
3.2mm Semi tempered coated glass |
Interlayer |
EVA/POE/PVB |
Back Glass |
3.2mm Semi tempered coated glass |
Frame |
No Frame |
Junction Box |
IP67, 3 diodes |
Cable |
4mm2 (0.006inches2), 900mm |
Connector |
MC4 or MC4 compatible |
Maximum Load Capacity(Pa) |
2400(wind load)/2400(snow load) |
25-year limited warranty of 80% power output; 10-year limited warranty of 90% power output; 12-year limited warranty of materials and workmanship.
Standard Packing: 38pcs/Pallet Module Quantity of 20’ container: 300pcs Module Quantity of 40’ container: 720pcs
| ENGINEERING DRAWING | IV CURVES |
 |
 |
