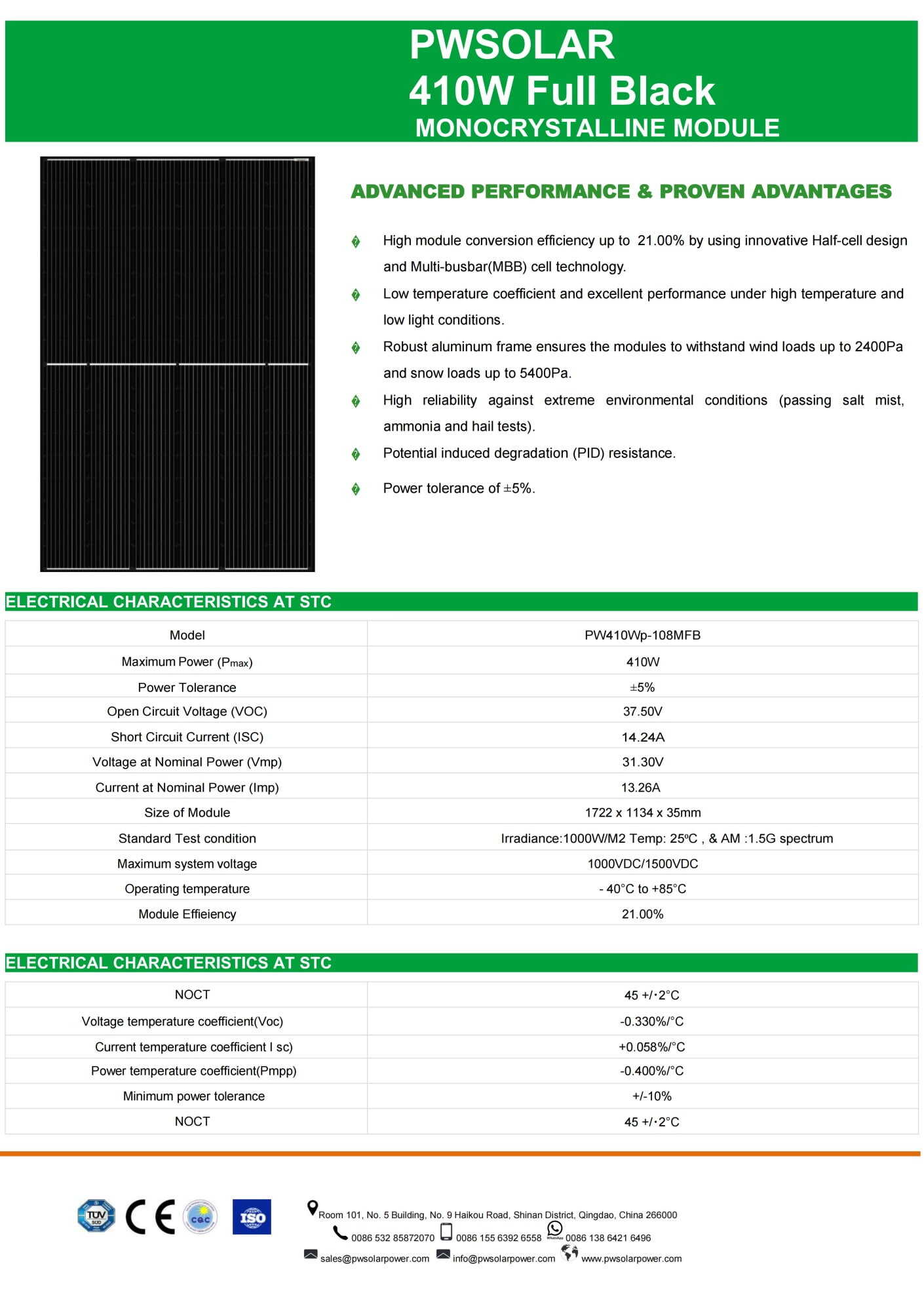

ADVANCED PERFORMANCE & PROVEN ADVANTAGES
◆ High module conversion efficiency up to 21.00% by using innovative Half-cell design and Multi-busbar(MBB) cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation (PID) resistance. ◆ Power tolerance of ±5%. |
Model |
PW410Wp-108MFB |
Maximum Power (Pmax) |
410W |
Power Tolerance |
±5% |
Open Circuit Voltage (VOC) |
37.50V |
Short Circuit Current (ISC) |
14.24A |
Voltage at Nominal Power (Vmp) |
31.30V |
Current at Nominal Power (Imp) |
13.26A |
Size of Module |
1722 x 1134 x 35mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Effieiency |
21.00% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |
Cell Type |
Monocrystalline PERC（182*91mm） |
Number of cell |
108pcs ( 6 x 18) |
Size of Module |
1722 x 1134 x 35mm |
Weight |
About 21.50kgs |
Front Cover |
3.2mm tempered glass with AR coating |
Frame |
Anodized aluminum alloy |
Junction Box |
IP68, 3 diodes |
Cable |
4mm2 (0.006inches2), Portait: 300mm (11.81inches); Lanscape:1200mm |
Connector |
MC4 or MC4 compatible |
12 year limited product; limited linear power warranty: 12 year 91.20% of nominal power output, 30 year 80.60% of nominal power output.
20 years product warranty; 30 years linear power output warranty
Standarding Packing: 31pcs/Pallet Module Quantity of 20’ container: 330pcs Module Quantity of 40’ container: 806pcs
| ENGINEERING DRAWING | IV CURVES |
 |
|
