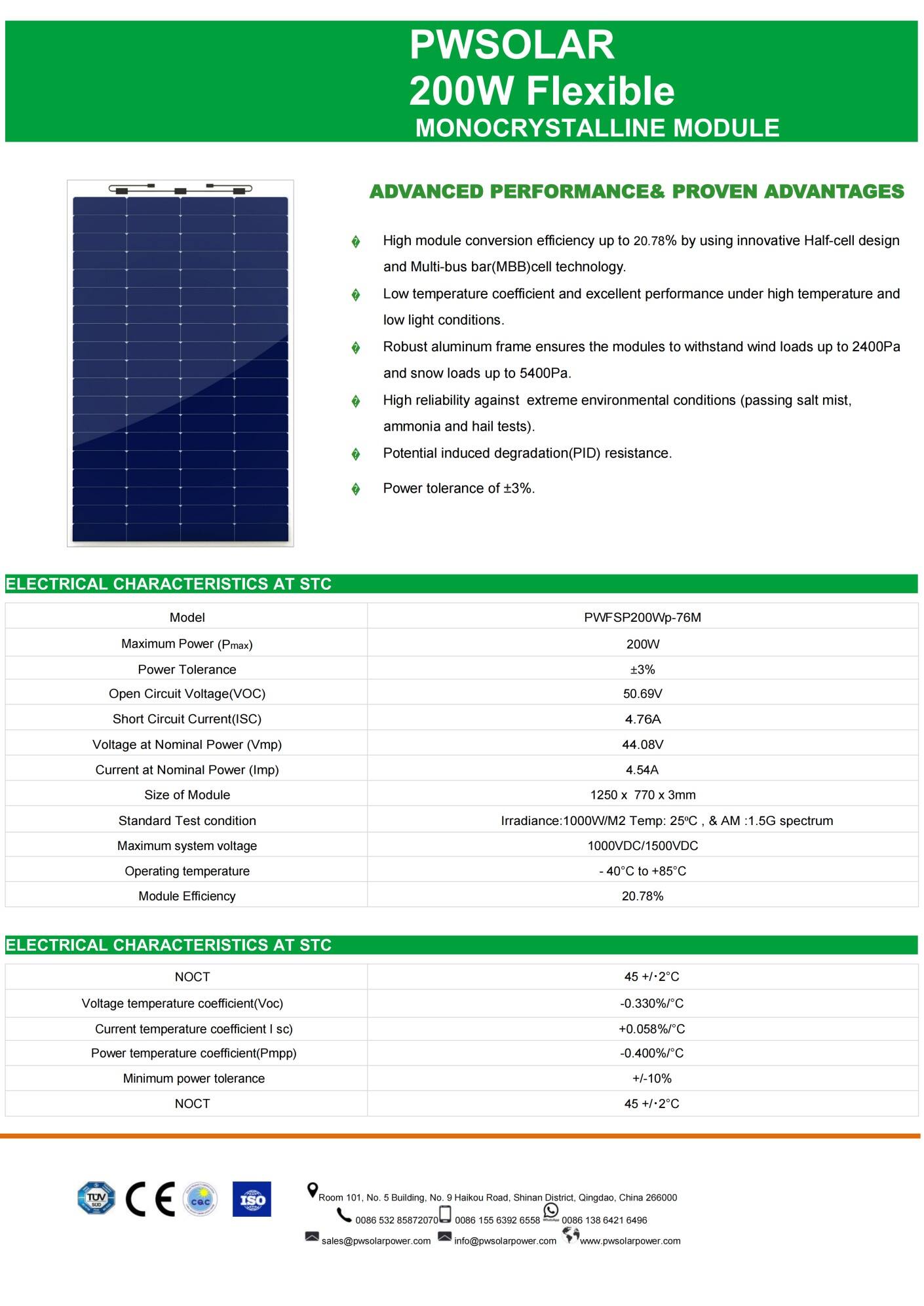

ADVANCED PERFORMANCE& PROVEN ADVANTAGES
◆ High module conversion efficiency up to 20.78% by using innovative Half-cell design and Multi-bus bar(MBB)cell technology. ◆ Low temperature coefficient and excellent performance under high temperature and low light conditions. ◆ Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa and snow loads up to 5400Pa. ◆ High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests). ◆ Potential induced degradation(PID) resistance. ◆ Power tolerance of ±3%. |
Model |
PWFSP200Wp-76M |
Maximum Power (Pmax) |
200W |
Power Tolerance |
±3% |
Open Circuit Voltage(VOC) |
50.69V |
Short Circuit Current(ISC) |
4.76A |
Voltage at Nominal Power (Vmp) |
44.08V |
Current at Nominal Power (Imp) |
4.54A |
Size of Module |
1250 x 770 x 3mm |
Standard Test condition |
Irradiance:1000W/M2 Temp: 25⁰C , & AM :1.5G spectrum |
Maximum system voltage |
1000VDC/1500VDC |
Operating temperature |
- 40°C to +85°C |
Module Efficiency |
20.78% |
NOCT |
45 +/・2°C |
Voltage temperature coefficient(Voc) |
-0.330%/°C |
Current temperature coefficient I sc) |
+0.058%/°C |
Power temperature coefficient(Pmpp) |
-0.400%/°C |
Minimum power tolerance |
+/-10% |
NOCT |
45 +/・2°C |

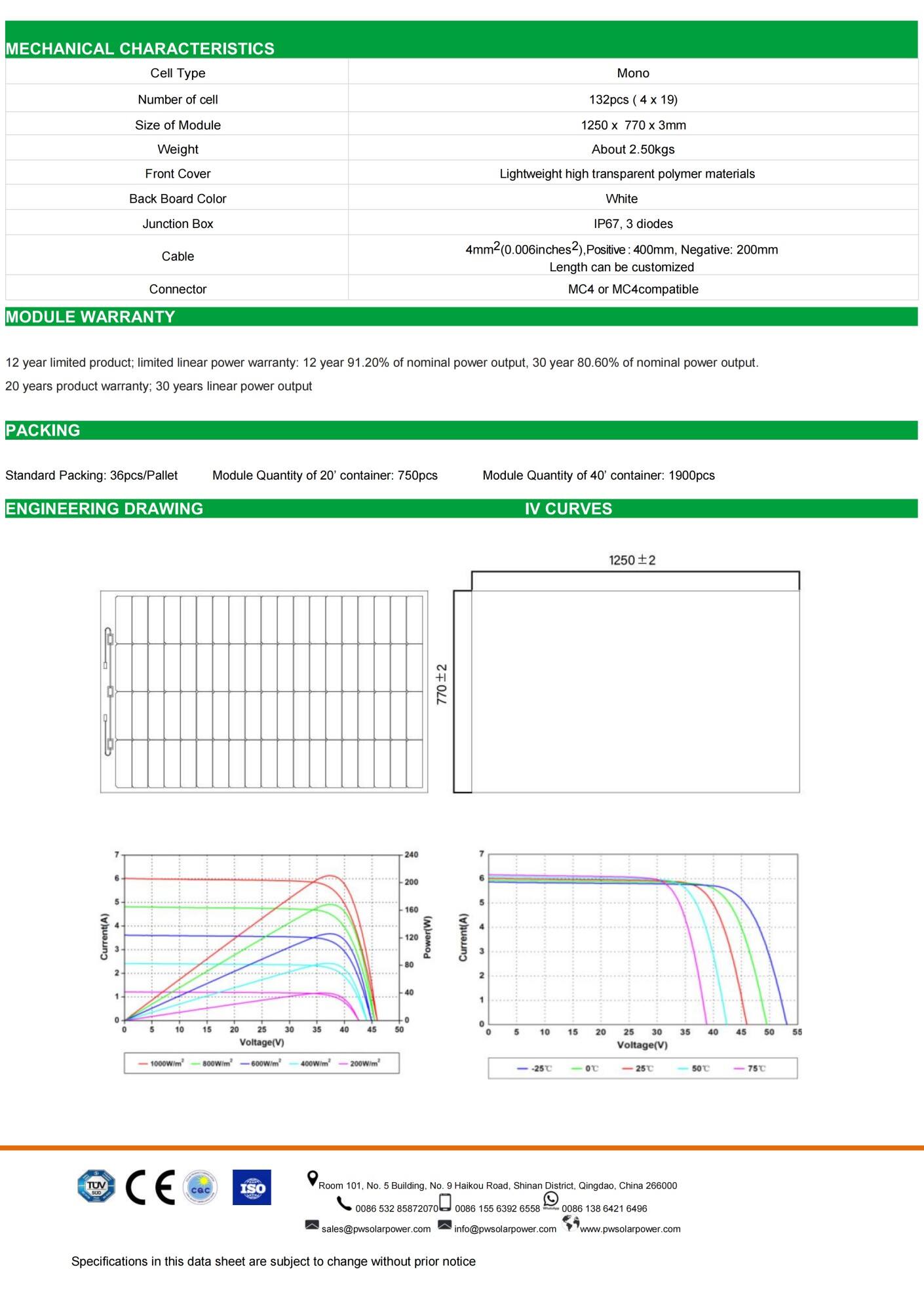

Cell Type |
Mono |
Number of cell |
132pcs ( 4 x 19) |
Size of Module |
1250 x 770 x 3mm |
Weight |
About 2.50kgs |
Front Cover |
Lightweight high transparent polymer materials |
Back Board Color |
White |
Junction Box |
IP67, 3 diodes |
Cable |
4mm2(0.006inches2),Positive : 400mm, Negative: 200mm Length can be customized |
Connector |
MC4 or MC4compatible |
12 year limited product; limited linear power warranty: 12 year 91.20% of nominal power output, 30 year 80.60% of nominal power output.
20 years product warranty; 30 years linear power output
Standard Packing: 36pcs/Pallet Module Quantity of 20’ container: 750pcs Module Quantity of 40’ container: 1900pcs
| ENGINEERING DRAWING | IV CURVES |
   | |
